SAMTEC ERF8-025-01-S-D-RA-L-TR
SAMTEC ERF8-025-01-S-D-RA-L-TR

SAMTEC ERF8-025-01-S-D-RA-L-TR

Manufacturer No:

ERF8-025-01-S-D-RA-L-TR

Manufacturer:

SAMTEC

Package:

Description:

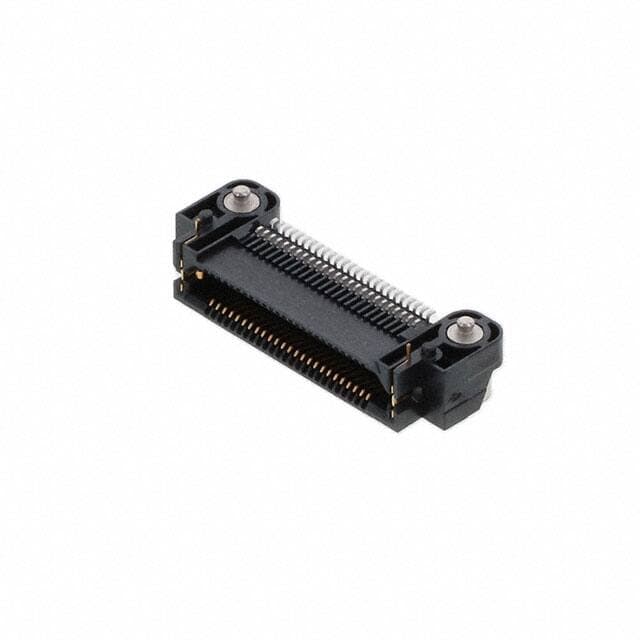

Socket, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount, Right Angle 50 Positions Edge Rate? ERF8 Gold Solder Copper

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ERF8-025-01-S-D-RA-L-TR information

SAMTEC ERF8-025-01-S-D-RA-L-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC ERF8-025-01-S-D-RA-L-TR.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Contact Material
  • Copper
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Polymer
  • Mounting Option 1
  • LOCKING
  • Board Mounting Option
  • PEG
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Edge Rate? ERF8
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Feature
  • Board Guide, Latches, Mounting Flange
  • Part Status
  • Active
  • Termination
  • Solder
  • Connector Type
  • Socket, Outer Shroud Contacts
  • Number of Positions
  • 50
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Number of Rows
  • 2
  • Gender
  • Female
  • Subcategory
  • Headers and Edge Type Connectors
  • Pitch
  • 0.031 0.80mm
  • Total Number of Contacts
  • 50
  • Orientation
  • Right Angle
  • Depth
  • 11.35mm
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • PCB Contact Pattern
  • RECTANGULAR
  • Housing Color
  • Black
  • Rated Current (Signal)
  • 1.4A
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 15mOhm
  • Body/Shell Style
  • RECEPTACLE
  • Max Voltage Rating (AC)
  • 235V
  • Max Current Rating
  • 1.6A
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 900VAC V
  • Contact Pattern
  • RECTANGULAR
  • Length
  • 33mm
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Plating Thickness
  • 30?in
  • Height Above Board
  • 0.246 6.25mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC ERF8-025-01-S-D-RA-L-TR.

Datasheets:

ERF8-025-01-S-D-RA-L-TR Overview


This product is packaged in a Socket, Outer Shroud Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount, Right Angle indicates that the device is mounted.The product is a part of the Edge Rate? ERF8 Series.It is possible to ensure that Board Guide, Latches, Mounting Flange remains constant during operation.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.

ERF8-025-01-S-D-RA-L-TR Features


Edge Rate? ERF8 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount, Right Angle
Max Operating temperature at -55°C


ERF8-025-01-S-D-RA-L-TR Applications


There are a lot of Samtec Inc.
ERF8-025-01-S-D-RA-L-TR Rectangular Connectors applications.
