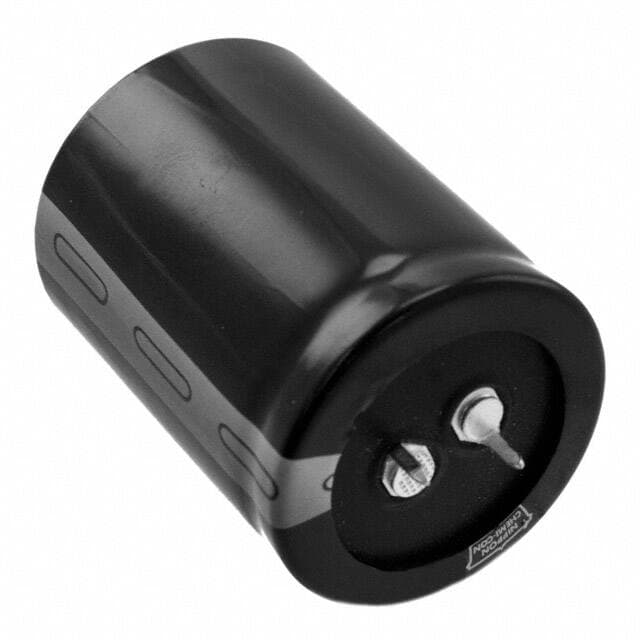

United Chemi-Con ESMQ161VSN332MA45S
United Chemi-Con ESMQ161VSN332MA45S

United Chemi-Con ESMQ161VSN332MA45S

Manufacturer No:

ESMQ161VSN332MA45S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMQ 3300?F Capacitor ±20% Bulk Through Hole 5.75A 1.378Dia 35.00mm -25°C~85°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMQ161VSN332MA45S information

United Chemi-Con ESMQ161VSN332MA45S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMQ161VSN332MA45S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • SMQ
  • Published
  • 2005
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 3300?F
  • Voltage - Rated DC
  • 160V
  • Lead Pitch
  • 10mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Ripple Current
  • 5.75A
  • Test Frequency
  • 120Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 5.75A @ 120Hz
  • Ripple Current @ High Frequency
  • 8.625A @ 50kHz
  • Dissipation Factor
  • 0.15 %
  • ESR
  • 75 m?
  • Diameter
  • 35mm
  • Height
  • 45mm
  • Height Seated (Max)
  • 1.772 45.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMQ161VSN332MA45S.

Datasheets:

ESMQ161VSN332MA45S Overview


As far as the ripple current is concerned, it is 8.625A @ 50kHz at full charge.As far as the ripple current is concerned, it is 5.75A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.772 45.00mm.It operates from a 0.15 % dissipation factor.This capacitor operates from a voltage - Rated DC of 160V.The operating temperature should be maintained at -25°C~85°C for high efficiency.

ESMQ161VSN332MA45S Features


the ripple current is 8.625A @ 50kHz.
the ripple current is 5.75A @ 120Hz.
a dissipation factor of 0.15 %
voltage - Rated DC of 160V
an operating temperature of -25°C~85°C


ESMQ161VSN332MA45S Applications


There are a lot of United Chemi-Con
ESMQ161VSN332MA45S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
