Renesas F0480NBGI

Manufacturer No:

F0480NBGI

Manufacturer:

Renesas

Package:

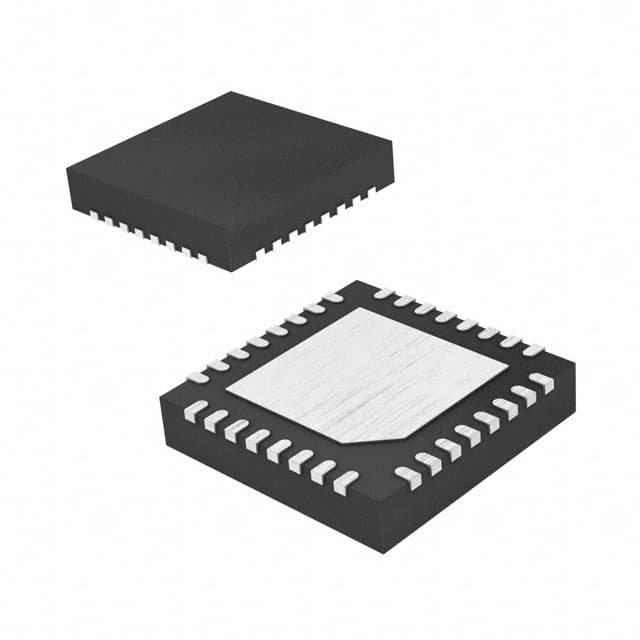

32-WFQFN Exposed Pad

Description:

23dB LTE, WiMax Tray 400MHz~2.7GHz 4.75V~5.25V P1dB:22.2dBm 4dB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

F0480NBGI information

Renesas F0480NBGI technical specifications, attributes, parameters and parts with similar specifications to Renesas F0480NBGI.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
32-WFQFN Exposed Pad

Supplier Device Package
32-VFQFPN (5x5)

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
4.75V~5.25V

Frequency
400MHz~2.7GHz

Test Frequency
900MHz

Current - Supply
117mA

Gain
23dB

RF Type
LTE, WiMax

Noise Figure
4dB

P1dB
22.2dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas F0480NBGI.

Datasheets:

renesaselectronicsamericainc-f0480nbgi8-datasheets-7401.pdf

F0480NBGI Overview

LTE, WiMax RF Type from the RF Amplifier.High reliability is provided by the advanced RF Amp' packaging Tray.The RF power Amplifier is conveniently packaged in 32-WFQFN Exposed Pad, making it easy to ship internationally.mount Amplifiers RF in the direction of Surface Mount.4.75V~5.25V voltage can be supplied by the Amplifiers RF.117mA is the supply RF Amplifiers' current it uses to operate.

F0480NBGI Features

RF Type LTE, WiMax
4.75V~5.25V voltage
117mA current

F0480NBGI Applications

There are a lot of Renesas Electronics America Inc.
F0480NBGI RF Amplifiers applications.

Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
