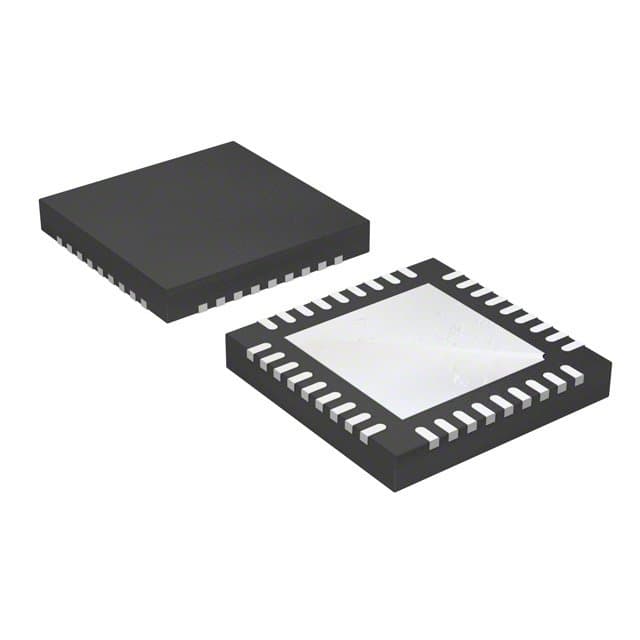

Renesas F1102NBGI8

Manufacturer No:

F1102NBGI8

Manufacturer:

Renesas

Package:

QFN EP

Description:

400MHz 36-Pin 9.5 dB Matte Tin (Sn) QFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

F1102NBGI8 information

Renesas F1102NBGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas F1102NBGI8.

Type
Parameter

Factory Lead Time
6 Weeks

Package / Case
QFN EP

Surface Mount
YES

Number of Pins
36

Packaging
Tape & Reel

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
400MHz

Pin Count
36

Temperature Grade
INDUSTRIAL

Operating Supply Current
330mA

Power Dissipation
2.2W

Gain
9 dB

Telecom IC Type
TELECOM CIRCUIT

Noise Figure
9.5 dB

Length
6mm

Height Seated (Max)
0.8mm

Width
6mm

Thickness
800?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas F1102NBGI8.

F1102NBGI8 Overview

High reliability is achieved using advanced RF mixer' packaging Tape & Reel.Shipping overseas is convenient thanks to the mixer RF's packaging in QFN EP.For it to perform as expected, the supply current must be in the range of 330mA.36 pins are on the RF mix.At a temperature around 100°C degrees Celsius, RF mixer shouldbe running.

F1102NBGI8 Features

Packed in QFN EP
330mAmA
36 pins
100°C degrees Celsius

F1102NBGI8 Applications

There are a lot of Integrated Device Technology (IDT)
F1102NBGI8 RF Mixers applications.

Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
