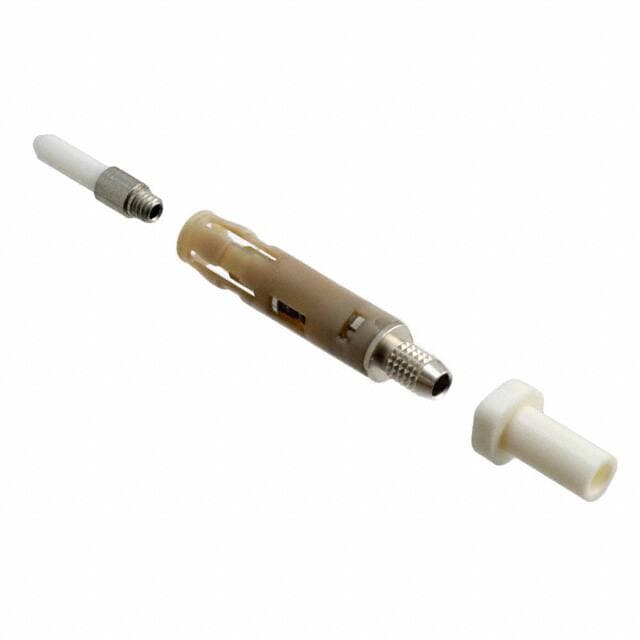

LEMO FFS.01.250.DLAE31

Manufacturer No:

FFS.01.250.DLAE31

Manufacturer:

LEMO

Package:

Description:

Plug, Male Pin Snap-On 50Ohm Bulk Miniature Coaxial Solder 1 Port Polyetheretherketone (PEEK) -55°C~230°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FFS.01.250.DLAE31 information

LEMO FFS.01.250.DLAE31 technical specifications, attributes, parameters and parts with similar specifications to LEMO FFS.01.250.DLAE31.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Shell Material
Metal

Dielectric Material
Polyetheretherketone (PEEK)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-55°C~230°C

Packaging
Bulk

Series
01

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Plug, Male Pin

Resistance
50Ohm

Voltage - Rated
300V

HTS Code
8544

Fastening Type
Snap-On

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Ingress Protection
IP50 - Dust Protected

Reference Standard
UL

Reliability
COMMERCIAL

Contact Gender
Male

Body Depth
0.787 inch

Rated Current (Signal)
4A

Impedance
50Ohm

Connector Style
Miniature Coaxial

Number of Ports
1

Mating Cycles
1000

Contact Termination
Solder

Operating Frequency-Max
4.2GHz

Cable Group
RG-174, 179B, 187A, 188A, 316

VSWR
1.2

Shield Termination
Crimp

RoHS Status
RoHS Compliant

Ratings
IP50

Download datasheets and manufacturer documentation for LEMO FFS.01.250.DLAE31.

FFS.01.250.DLAE31 Overview

In general, the device resistance should be kept within the range of 50Ohm.Packaging for this item is Plug, Male Pin.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 01 Series.The device has 1 ports for managing a variety of tasks.It is mounted by Free Hanging.It operates at an operating temperature of -55°C~230°C.

FFS.01.250.DLAE31 Features

01 series

FFS.01.250.DLAE31 Applications

There are a lot of LEMO
FFS.01.250.DLAE31 Coaxial Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
