Manufacturer No:

FH30M-80S-0.4SHW(98)

Manufacturer:

HIROSE

Package:

Description:

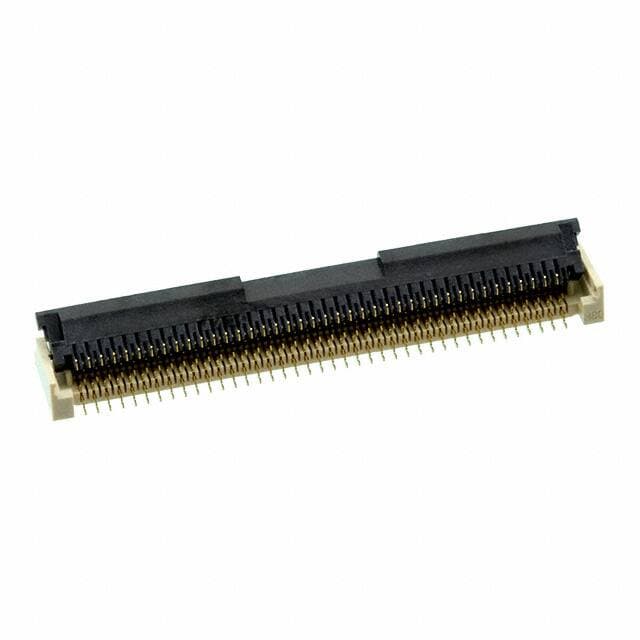

Card Edge Connector, 80 Contact(s), 1 Row(s), Right Angle, 0.016 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH30M-80S-0.4SHW(98) information

HIROSE FH30M-80S-0.4SHW(98) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH30M-80S-0.4SHW(98).

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • HIROSE ELECTRIC CO LTD
  • Reach Compliance Code
  • unknown
  • ECCN Code
  • EAR99
  • Samacsys Manufacturer
  • Hirose
  • Body Breadth
  • 0.118 inch
  • Body Depth
  • 0.258 inch
  • Body Length
  • 1.409 inch
  • Connector Type
  • FFC/FPC CONNECTOR
  • Contact Finish Mating
  • AU
  • Contact Finish Termination
  • GOLD
  • Contact Material
  • PHOSPHOR BRONZE
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 150 mΩ
  • Contact Style
  • BELLOWED TYPE
  • Dielectric Withstanding Voltage
  • 200VAC V
  • Durability
  • 20 Cycles
  • Filter Feature
  • NO
  • Insertion Force-Max
  • ZIF N
  • Insulation Resistance
  • 500000000 Ω
  • Insulator Color
  • BEIGE
  • Insulator Material
  • LIQUID CRYSTAL POLYMER
  • Mating Contact Pitch
  • 0.020 inch
  • Mounting Option 1
  • LOCKING
  • Mounting Style
  • RIGHT ANGLE
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 1
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -40 °C
  • PCB Contact Pattern
  • STAGGERED
  • PCB Contact Row Spacing
  • 4.6482 mm
  • Plating Thickness
  • FLASH inch
  • Rated Current (Signal)
  • 0.3 A
  • Reference Standard
  • UL
  • Terminal Pitch
  • 0.7874 mm
  • Termination Type
  • SURFACE MOUNT
  • Total Number of Contacts
  • 80

Download datasheets and manufacturer documentation for HIROSE FH30M-80S-0.4SHW(98).

Datasheets:

FH30M-80S-0.4SHW(98) Overview


There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number FH30 belongs to the FH30 Series.In many ways, it is more powerful due to its Zero Insertion Force (ZIF) feature.There is a Surface Mount mount on the part.This device operates at a temperature of -40°C~85°C.

FH30M-80S-0.4SHW(98) Features


FH30 series


FH30M-80S-0.4SHW(98) Applications


There are a lot of Hirose Electric Co Ltd
FH30M-80S-0.4SHW(98) FFC, FPC (Flat Flexible) Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations

User Guide
