TI GC5016-PBZ
Manufacturer No:
GC5016-PBZ
Manufacturer:
Package:

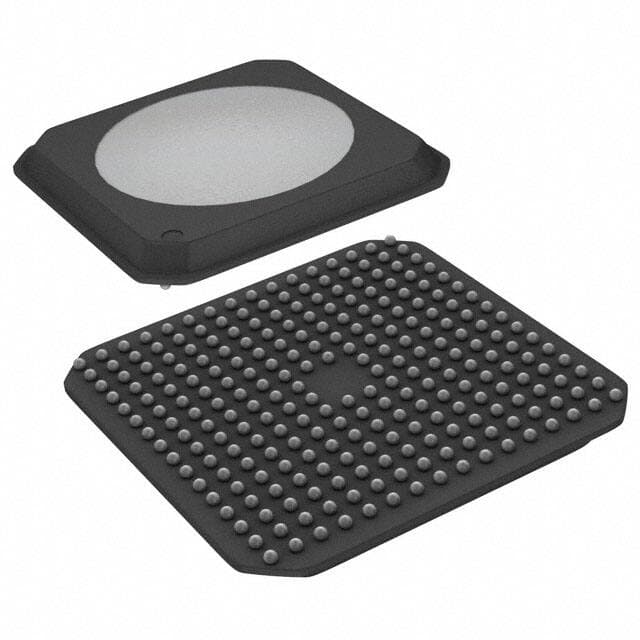

252-BGA Exposed Pad
Description:
Cellular, CDMA2000, W-CDMA 4-Mixer 252-Pin Up/Down Converter Tin/Silver/Copper (Sn/Ag/Cu) 252-BGA Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GC5016-PBZ information
TI GC5016-PBZ technical specifications, attributes, parameters and parts with similar specifications to TI GC5016-PBZ.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 252-BGA Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 252
- Weight
- 977.009615mg
- Packaging
- Tray
- Series
- GC5016
- JESD-609 Code
- e1
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 252
- ECCN Code
- 5A991.G
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Other Telecom ICs
- Max Power Dissipation
- 1W
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 1.8V
- Terminal Pitch
- 1mm
- Operating Supply Voltage
- 3.3V
- Temperature Grade
- INDUSTRIAL
- Operating Supply Current
- 4mA
- Power Dissipation
- 1W
- Telecom IC Type
- RF AND BASEBAND CIRCUIT
- RF Type
- Cellular, CDMA2000, W-CDMA
- Secondary Attributes
- Up/Down Converter
- Number of Mixers
- 4
- Length
- 17mm
- Height Seated (Max)
- 2.02mm
- Width
- 17mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for TI GC5016-PBZ.
PCN Obsolescence/ EOL:
GC5016-PBZ Overview
A high level of reliability is provided by using an advanced RF mixer' packaging Tray.The mixer RF ships overseas conveniently packed in 252-BGA Exposed Pad.This RF circuit board needs to operate at 4mA supply current in order to deliver its performance.252 pins are provided on the RF mix.Running the RF mixer at 85°C is ideal.The RF mixer has type Cellular, CDMA2000, W-CDMA RF.The mount is provided by Surface Mount.As the name implies, this RF mixer is a kind of the famous GC5016 series product line.
GC5016-PBZ Features
Packed in 252-BGA Exposed Pad
4mAmA
252 pins
85°C degrees Celsius
Cellular, CDMA2000, W-CDMA Type
GC5016-PBZ Applications
There are a lot of Texas Instruments
GC5016-PBZ RF Mixers applications.
- Laptops
- Marine Navigation
- Avionics
- Cellular Phones with GPS
- Notebook PC
- Ultra-Mobile PC
- Recreational
- Marine Navigation
- Avionics
- GPS
