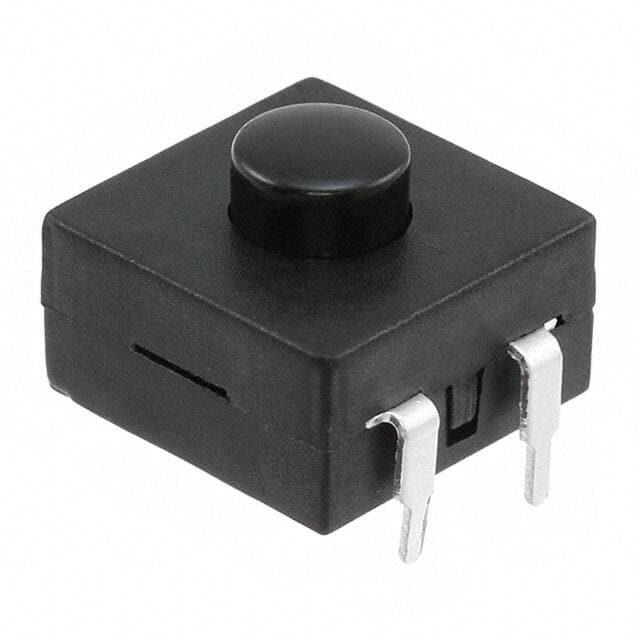

CW Industries GPTS203211B

Manufacturer No:

GPTS203211B

Manufacturer:

CW Industries

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GPTS203211B information

CW Industries GPTS203211B technical specifications, attributes, parameters and parts with similar specifications to CW Industries GPTS203211B.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Number of Pins
2

Housing Material
POLYBUTYLENE TEREPHTHALATE

Terminal Material
BRASS

Packaging
Bulk

Series
GPTS

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pin

Type
Standard

Max Operating Temperature
65°C

Min Operating Temperature
-25°C

Voltage - Rated DC
30V

Current Rating (Amps)
1A DC

Current Rating
1A

Termination Style
PC Pin

Body Breadth
11.9888 mm

Actuator Type
Round, Button

Circuit
SPST

Switch Function
Off-On

Contact Resistance
0.1mOhm

Color - Actuator/Cap
Black

Contact Current(DC)-Max
1A

Dielectric Withstanding Voltage
1000VAC V

Electrical Life
20,000 Cycles

Mechanical Life
20,000 Cycles

Contact (DC) Max Rating R Load
1A@30VDC

PCB Hole Count
2

Contact Function
ON-OFF

Life (Cycles)
20000 cycles

Length
12mm

Width
12mm

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-2

Download datasheets and manufacturer documentation for CW Industries GPTS203211B.

CW Industries Pushbutton Switches GPTS203211B are single-pole, single-throw (SPST) pushbutton switches designed for use in a variety of applications. These switches feature a 1A 30V rating and are designed to provide reliable switching performance in a variety of environments. The switches are constructed with a durable plastic housing and feature a snap-action mechanism for reliable operation. The switches are available in a variety of colors and can be used in a variety of applications, including industrial control, automotive, and consumer electronics. The switches are UL and CSA approved and are RoHS compliant.
