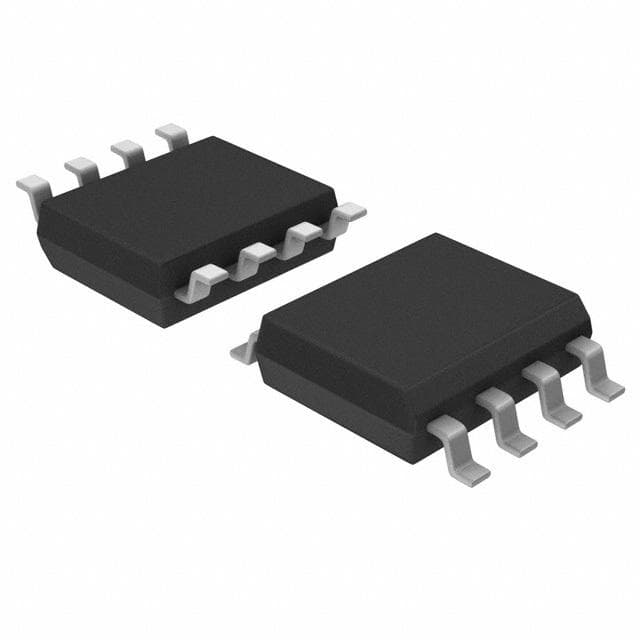

Renesas HA4201CB96

Manufacturer No:

HA4201CB96

Manufacturer:

Renesas

Package:

SOIC

Description:

8 Terminations Specialized ICs 1 Functions 5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HA4201CB96 information

Renesas HA4201CB96 technical specifications, attributes, parameters and parts with similar specifications to Renesas HA4201CB96.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Bulk

Published
1998

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
VIDEO APPLICATION

HTS Code
8542.39.00.01

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Operating Temperature (Max)
70°C

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.5V

Number of Channels
1

Analog IC - Other Type
CROSS POINT SWITCH

Throw Configuration
SPST

Neg Supply Voltage-Nom (Vsup)
-5V

Off-state Isolation-Nom
85 dB

Neg Supply Voltage-Max (Vsup)
-5.5V

Switching
MAKE-BEFORE-BREAK

Normal Position
NO

Neg Supply Voltage-Min (Vsup)
-4.5V

Length
4.9mm

Height Seated (Max)
1.75mm

Width
3.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HA4201CB96.

Datasheets:

intersil-ha4201cb96-datasheets-3670.pdf

intersil-ha4201cb96-datasheets-0215.pdf

HA4201CB96 Overview

SOIC encloses the ICs.The package Bulk contains integrated circuit.8 terminations are present on the ICs solutions.5V should be the operating mode for this logic gate IC.In order to make this ICs application work properly, it should be mounted at Surface Mount.Temperatures below 70°C should be used.It should not be possible for the minimum supply voltage (Vsup) to be less than 4.5V for this integrated circuit system.A supply voltage (Vsup) of 5.5V should not be exceeded with this application specific integrated circuit.Multiplexer or Switches is the subcategory for this integrated circuit system.There is a capability for delivering voltage at +-5V.1 channels are on the IC integrated circuit.Check out the additional features in this integrated circuit board :VIDEO APPLICATION.
