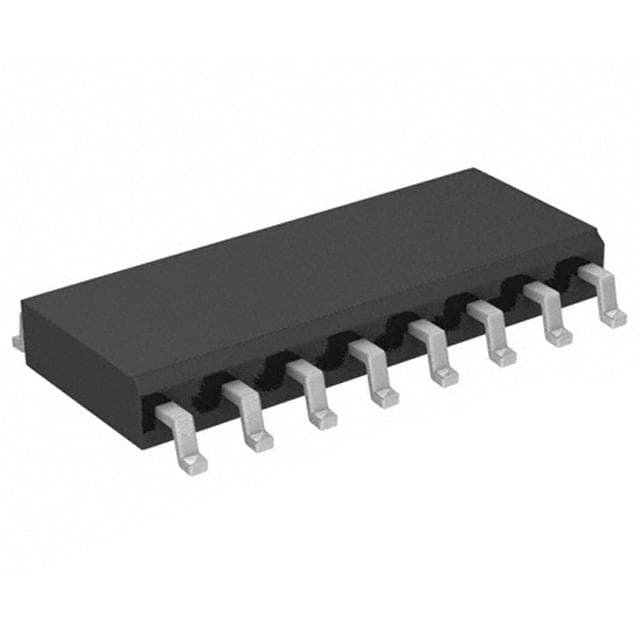

Renesas HA4344BCBZ96

Manufacturer No:

HA4344BCBZ96

Manufacturer:

Renesas

Package:

SOIC

Description:

16 Terminations Specialized ICs 1 Functions 5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HA4344BCBZ96 information

Renesas HA4344BCBZ96 technical specifications, attributes, parameters and parts with similar specifications to Renesas HA4344BCBZ96.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Published
2006

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Multiplexer or Switches

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
16

JESD-30 Code
R-PDSO-G16

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Number of Channels
4

Analog IC - Other Type
CROSS POINT SWITCH

Supply Current-Max (Isup)
15.5mA

Neg Supply Voltage-Nom (Vsup)
-5V

Max Dual Supply Voltage
5.5V

Min Dual Supply Voltage
4.5V

Off-state Isolation-Nom
70 dB

Length
9.9mm

Height Seated (Max)
1.75mm

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HA4344BCBZ96.

Datasheets:

intersil-ha4344bcbz96-datasheets-1047.pdf

HA4344BCBZ96 Overview

It can be seen that the ICs has been enclosed within the package SOIC.16 terminations were found on the ICs solutions.In this case, the logic gate IC should be run at 5V.A suggested mounting method for this ICs application would be to mount it by Surface Mount.It should be used at integrated circuit chip's temperatures below 70°C to maximize its performance.A integrated circuit system should not operate at temperatures below 0°C.Total pin count is 16.It is included in the subcategory Multiplexer or Switches.In terms of operating voltage, the application specific integrated circuit's rating is 5V.It is a IC integrated circuit that has 4 channels on it.

HA4344BCBZ96 Features

HA4344BCBZ96 Applications

There are a lot of Intersil (Renesas Electronics America)
HA4344BCBZ96 Specialized ICs applications.

Industrial Instruments
PC-Based Instruments
Portable Instruments
Membrane Keypads
Authentication of Medical Sensors and Tools
Secure Management of Limited Use Consumables
IoT Node Authentication
Peripheral Authentication
Reference Design License Management
Printer Cartridge Identification and Authentication
