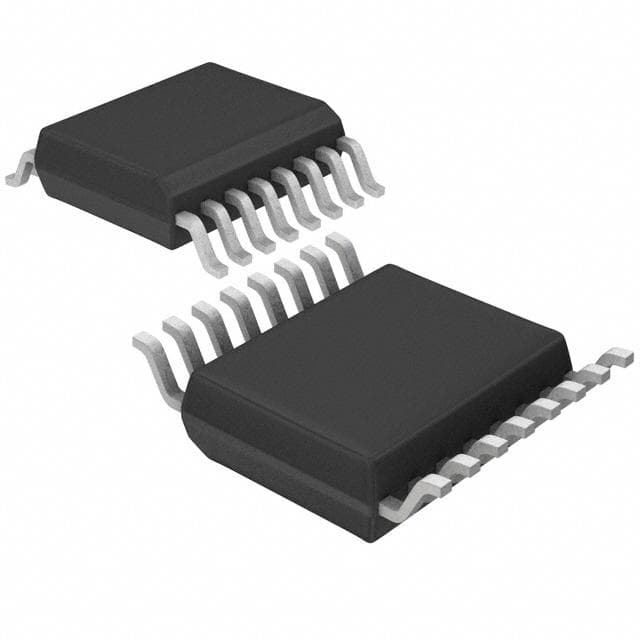

Renesas ISL84052IA

Manufacturer No:

ISL84052IA

Manufacturer:

Renesas

Package:

SSOP

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 5V SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84052IA information

Renesas ISL84052IA technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84052IA.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Packaging
Bulk

Published
2003

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
225Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
5V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

JESD-30 Code
R-PDSO-G16

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
6V

Supply Voltage-Min (Vsup)
2V

Number of Channels
4

Number of Circuits
3

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Operating Supply Current
1?A

Throw Configuration
4PST

Logic Function
Demultiplexer, Multiplexer

Supply Type
Dual, Single

Supply Current-Max (Isup)
0.01mA

Neg Supply Voltage-Nom (Vsup)
-5V

Off-state Isolation-Nom
90 dB

Neg Supply Voltage-Max (Vsup)
-6V

On-state Resistance Match-Nom
6Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
225ns

Switch-off Time-Max
200ns

Neg Supply Voltage-Min (Vsup)
-2V

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84052IA.

Datasheets:

intersil-isl84052ia-datasheets-1662.pdf

ISL84052IA Overview

Packed in SSOP, the electronic component is convenient for shipping overseas. Advanced packaging method Bulk is used to provide high reliability. There are 16 terminations totally. By its 4 channels, the electronic component provides high-quality output. With a 5V voltage supply, the electrical component should be turned on and run. 16 pins are injected to the electronic part body. This multiplexer is composed of 3 circuits. This digital multiplexer has 225Ohm internal resistance. This switch device is a typical Multiplexer or Switches. A cost-effective Dual, Single supply type analogue multiplexer. 1?A current would be enough for this multiplexer to operate. Integrated with DIFFERENTIAL MULTIPLEXER analog IC. The switches should not operate in an environment where the temperature is higher than 85°C. It requires a minimum voltage of 2V to supply the switch device.

ISL84052IA Features

4 Channels
1?A Supply Current

ISL84052IA Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84052IA Analog Switches & Multiplexers ICs applications.

High-Voltage
Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
