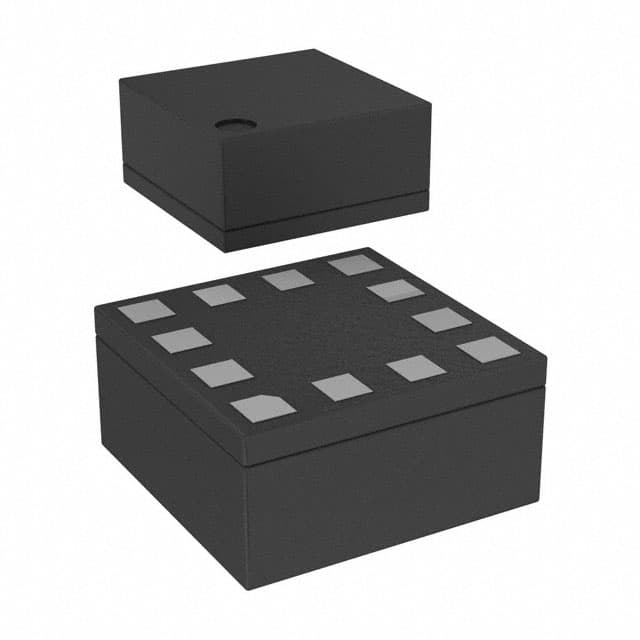

ST ISM303DACTR

Manufacturer No:

ISM303DACTR

Manufacturer:

Package:

LGA-16

Description:

High Performance,Low Power, compact 3D accelerometer and 3D Magnetometer module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISM303DACTR information

ST ISM303DACTR technical specifications, attributes, parameters and parts with similar specifications to ST ISM303DACTR.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
LGA-16

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
STMicroelectronics

Analog IC - Other Type
ANALOG CIRCUIT

JESD-30 Code
S-PBGA-B16

Length
2 mm

Number of Functions
1

Number of Terminals
16

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
VFLGA

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Seated Height-Max
1 mm

Supply Voltage-Max (Vsup)
1.98 V

Supply Voltage-Min (Vsup)
1.71 V

Surface Mount
YES

Terminal Form
BUTT

Terminal Pitch
0.5 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
2 mm

Download datasheets and manufacturer documentation for ST ISM303DACTR.

Datasheets:

en.DM00431727.pdf

The STMicroelectronics Multifunction ISM303DACTR is a high-performance, low-power, compact-sized device designed to provide a wide range of features and functions. It is equipped with a 3-axis accelerometer, a 3-axis magnetometer, and a 3-axis digital output gyroscope, all of which are capable of providing accurate and reliable measurements. The device also features a temperature sensor, a pressure sensor, and a humidity sensor, allowing for a comprehensive range of environmental sensing capabilities. Additionally, the device is equipped with a low-power Bluetooth Low Energy (BLE) radio, allowing for wireless communication with other devices. The device is also capable of providing a wide range of motion and gesture recognition capabilities, making it ideal for use in a variety of applications. With its high performance, low power consumption, and compact size, the STMicroelectronics Multifunction ISM303DACTR is an ideal choice for a wide range of applications.
