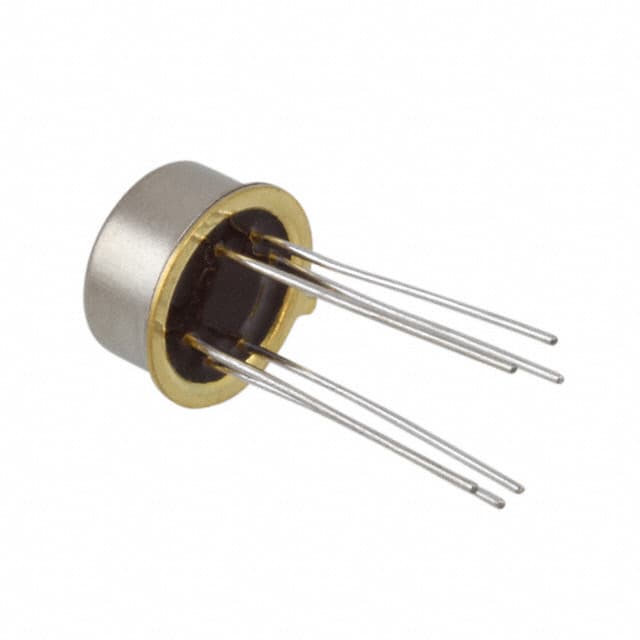

Microchip JANTXV2N2920

Manufacturer No:

JANTXV2N2920

Manufacturer:

Microchip

Package:

Description:

Military and defense, aerospace, HI-Rel Discrete Transistor

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

JANTXV2N2920 information

Microchip JANTXV2N2920 technical specifications, attributes, parameters and parts with similar specifications to Microchip JANTXV2N2920.

Type
Parameter

Category
Discrete Semiconductor Products

Manufacturer
Microchip Technology

Packaging
Bulk

Part Status
Active

Manufacturer Lead Time
22 Weeks

Current - Collector (Ic) (Max)
30mA

Current - Collector Cutoff (Max)
-

DC Current Gain (hFE) (Min) @ Ic, Vce
-

Frequency - Transition
-

Grade
Military

Mounting Type
Through Hole

Operating Temperature
200°C (TJ)

Package / Case
TO-78-6 Metal Can

Power - Max
-

Qualification
MIL-PRF-19500/355

Supplier Device Package
TO-78-6

Transistor Type
2 NPN (Dual)

Vce Saturation (Max) @ Ib, Ic
-

Voltage - Collector Emitter Breakdown (Max)
60V

ExportControlClassNumber
EAR99

HtsusCode
8541.29.0095

MoistureSensitivityLevel
1 (Unlimited)

ReachStatus
REACH Unaffected

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip JANTXV2N2920.

Data Sheets:

d17ff6af4cf82acb311761717db5ff11.pdf

This specification covers the performance requirements for two electrically isolated, matched NPN radiation hardened silicon 2N2919 and 2N2920, unitized transistors as one dual unit. Four levels of product assurance (JAN, JANTX, JANTXV and JANS) are provided for each encapsulated device type as specified in MIL-PRF-19500/355, and two levels of product assurance (JANHC and JANKC) are provided for each unencapsulated device (die), as specified in MIL-PRF-19500/355. Provisions for radiation hardness assurance (RHA) to eight radiation levels ("M", "D", "P", "L", "R”, “F”, “G” and “H”) are provided for JANTXV, JANS, JANHC, JANKC, JANHCD, and JANKCD product assurance levels.

The device package for the encapsulated device type are as follows: similar to TO-78 and surface mount version.

The dimensions and topography for JANHC and JANKC unencapsulated die are as outlined in MIL-PRF-19500/355.
