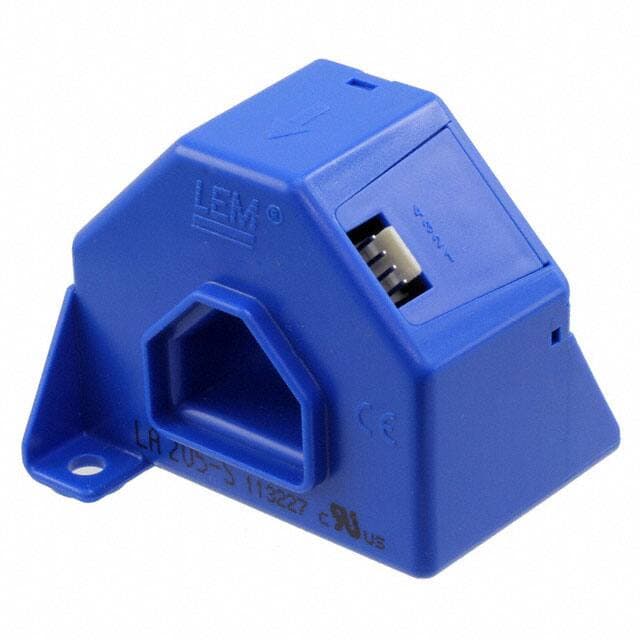

LEM LA 205-S

Manufacturer No:

LA 205-S

Manufacturer:

LEM

Package:

Module

Description:

LA Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -10°C~85°C ±12V~15V DC~100kHz 200A Accuracy-±0.8% Linearity-±0.1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LA 205-S information

LEM LA 205-S technical specifications, attributes, parameters and parts with similar specifications to LEM LA 205-S.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Chassis Mount

Package / Case
Module

Surface Mount
NO

Mounting Feature
PANEL MOUNT

Operating Temperature
-10°C~85°C

Packaging
Tray

Series
LA

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
49Ohm

Voltage - Supply
±12V~15V

Frequency
DC~100kHz

Output
Ratiometric, Current

Current - Supply (Max)
20mA

Body Length or Diameter
66mm

Body Breadth
56.5 mm

Number of Channels
1

Polarization
Bidirectional

Accuracy
±0.8%

Response Time
1μs

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.1%

Sensors/Transducers Type
MAGNETIC FIELD SENSOR,HALL EFFECT

Current - Sensing
200A

Body Height
56.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM LA 205-S.

LA 205-S Overview

The current sensors are put into Module packages for safety protection. These current sensors are packaged in the Tray to protect the devices from damage. The maximum current supplied by these current sensors should be 20mA.

LA 205-S Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -10°C~85°C
1 Channels
Mounting Type: Chassis Mount
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~100kHz
Sensing Current: 200A
Module Package

LA 205-S Applications

There are a lot of LEM USA Inc.
LA 205-S Current Sensors applications.

Motor and load control
Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
