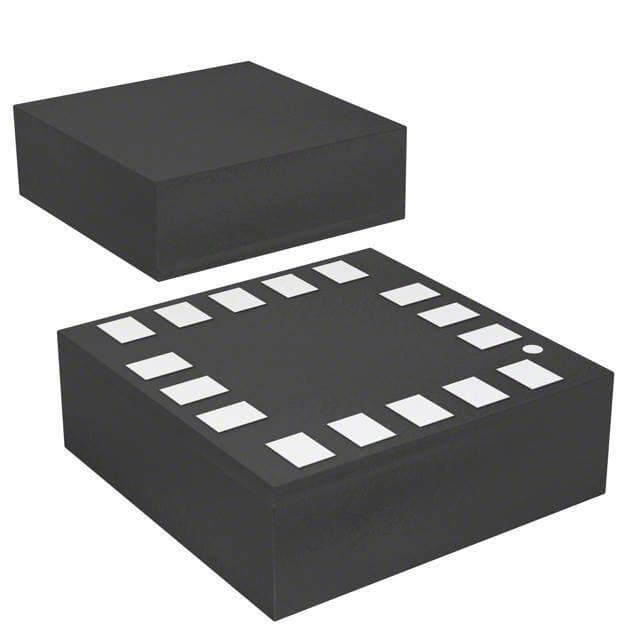

ST LPS331APY

Manufacturer No:

LPS331APY

Manufacturer:

Package:

16-VFLGA

Description:

Absolute Pressure Sensor I2C, SPI -40°C~85°C 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) No Port ±0.003PSI (±0.02kPa) 24 b 1.7V~3.6V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LPS331APY information

ST LPS331APY technical specifications, attributes, parameters and parts with similar specifications to ST LPS331APY.

Type
Parameter

Factory Lead Time
26 Weeks

Mount
Surface Mount

Package / Case
16-VFLGA

Number of Pins
16

Operating Temperature
-40°C~85°C

JESD-609 Code
e4

Feature
Temperature Compensated

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Terminal Finish
Nickel/Gold (Ni/Au)

Applications
Board Mount

Voltage - Supply
1.7V~3.6V

Base Part Number
LPS331

Output
24 b

Body Length or Diameter
3mm

Body Breadth
3 mm

Output Type
I2C, SPI

Termination Type
SOLDER

Nominal Supply Current
30?A

Number of Bits
24

Accuracy
±0.003PSI (±0.02kPa)

Operating Pressure
3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)

Pressure Type
Absolute

Maximum Pressure
290.08PSI (2000kPa)

Sensors/Transducers Type
PRESSURE SENSOR,PEIZORESISTIVE

Housing
PLASTIC

Max Pressure
290.08 PSI

Pressure Range-Max
18.274 Psi

Body Height
1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST LPS331APY.

Datasheets:

stmicroelectronics-lps331apy-datasheets-3244.pdf

LPS331APY Overview

As a convenience, the transducer is included in package 16-VFLGA. Reliable performance is ensured by setting the transducer temperature to -40°C~85°C. With a voltage supply of 1.7V~3.6V, the transducers can function properly. There is a requirement for connecting the 16 pins to make the transducer work properly. This transducer can handle pressures up to 18.274 Psi. Transducers working with 30?A supply current can function normally.

LPS331APY Features

Moisture Sensitivity Level: 3 (168 Hours)
Package / Case: 16-VFLGA
Operating Temperature: -40°C~85°C
16 Pins
Operating Pressure: 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)

LPS331APY Applications

There are a lot of STMicroelectronics
LPS331APY Transducers applications.

Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
Vertical velocity monitoring
Leisure, Sports, and Fitness Activity Identification
Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
