Harwin M20-9720546

Manufacturer No:

M20-9720546

Manufacturer:

Package:

Description:

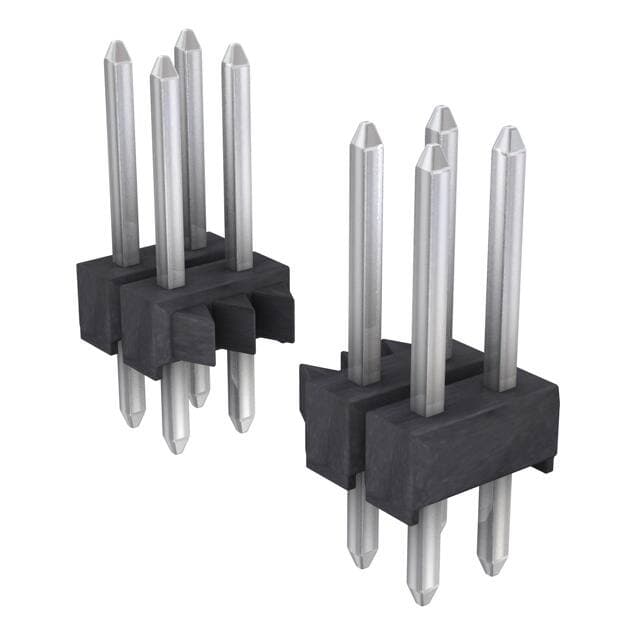

M20 Series 2-Row Header, Cuttable Solder Brass Bulk Through Hole Tin Polyamide (PA6T), Nylon 6T 10-Position Board to Board or Cable 0.100 2.54mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-9720546 information

Harwin M20-9720546 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-9720546.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Nylon

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
M20

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header, Cuttable

Number of Positions
10

Number of Rows
2

Gender
Male

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A per Contact

Orientation
Straight

Depth
5.08mm

Insulation Height
0.100 2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.122 3.10mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Length - Mating
0.276 7.00mm

Download datasheets and manufacturer documentation for Harwin M20-9720546.

Datasheets:

harwininc-m209720545-datasheets-5162.pdf

harwininc-z22020-datasheets-6705.pdf

M20-9720546 Overview

This product is packaged in a Header, Cuttable box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the M20 Series.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.

M20-9720546 Features

M20 series

M20-9720546 Applications

There are a lot of Harwin Inc.
M20-9720546 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
