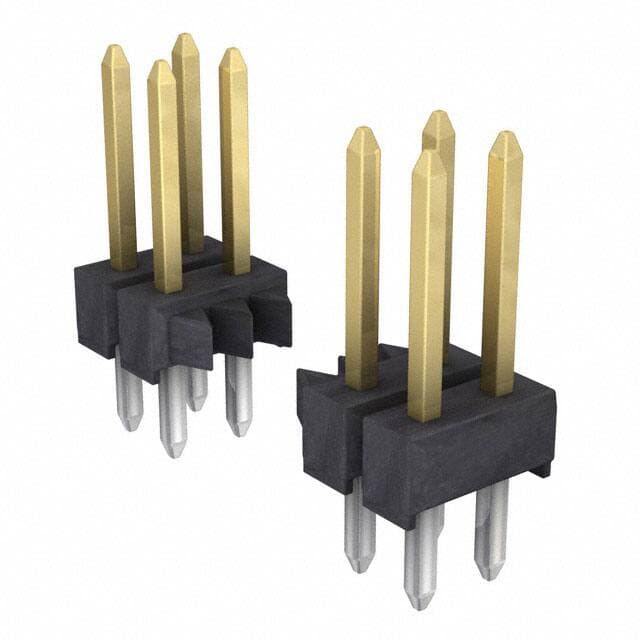

Harwin M20-9760542

Manufacturer No:

M20-9760542

Manufacturer:

Package:

Description:

M20 Series 2-Row Header, Cuttable Solder Brass Bulk Through Hole Gold Polyamide (PA6T), Nylon 6T 10-Position Board to Board or Cable 0.100 2.54mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-9760542 information

Harwin M20-9760542 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-9760542.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Nylon

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
M20

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header, Cuttable

Number of Positions
10

Number of Rows
2

Gender
Male

Voltage - Rated
750V

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A per Contact

Orientation
Straight

Depth
5.08mm

Insulation Height
0.100 2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.100 2.54mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.122 3.10mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Finish - Post
Tin

Download datasheets and manufacturer documentation for Harwin M20-9760542.

Datasheets:

harwininc-m209760442-datasheets-5668.pdf

harwininc-z22020-datasheets-6705.pdf

M20-9760542 Overview

Packaging is in the form of Header, Cuttable.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the M20 Series.Other features include ROHS COMPLIANT, to name just a few.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.

M20-9760542 Features

M20 series

M20-9760542 Applications

There are a lot of Harwin Inc.
M20-9760542 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
