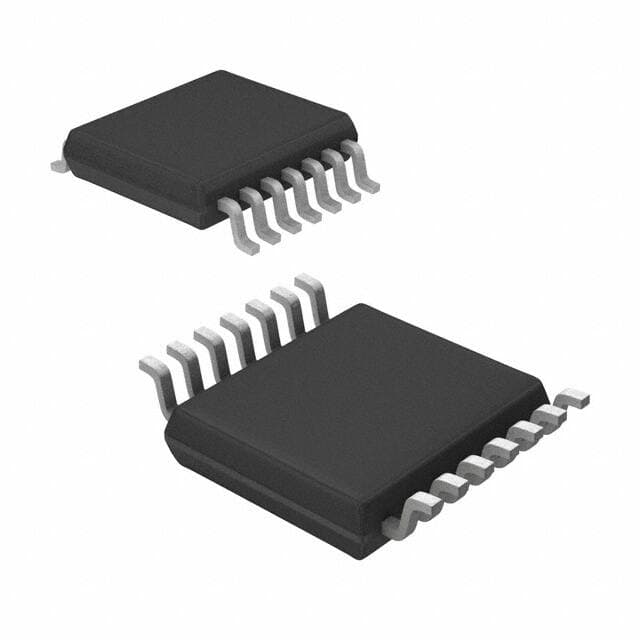

MELEXIS MLX90316EGO-BCG-000-RE

Manufacturer No:

MLX90316EGO-BCG-000-RE

Manufacturer:

MELEXIS

Package:

16-TSSOP (0.173, 4.40mm Width)

Description:

Triaxis® Series For Measuring Rotary Position Gull Wing External Magnet, Not Included -40°C~85°C Analog Voltage 4.5V~5.5V ±1° 0° ~ 360°, Continuous Hall Effect 16-TSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MLX90316EGO-BCG-000-RE information

MELEXIS MLX90316EGO-BCG-000-RE technical specifications, attributes, parameters and parts with similar specifications to MELEXIS MLX90316EGO-BCG-000-RE.

Type
Parameter

Factory Lead Time
26 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-TSSOP (0.173, 4.40mm Width)

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
Triaxis®

Published
2007

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Termination
SMD/SMT

Terminal Finish
Matte Tin (Sn)

Additional Feature
ITS ALSO HAVE DIGITAL OUTPUT CURRENT -20 TO 20 MILLI AMPERE

Subcategory
Other Sensors

Technology
Hall Effect

Voltage - Supply
4.5V~5.5V

Output
Analog Voltage

Termination Style
Gull Wing

Body Length or Diameter
5mm

Body Breadth
4.4 mm

Actuator Type
External Magnet, Not Included

Operating Supply Voltage
5.5V

Nominal Supply Current
13.5mA

Response Time
400 ?s

Linearity
±1°

Sensing Method
Hall Effect

Housing
PLASTIC

For Measuring
Rotary Position

Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous

Measurement Range-Max
360 deg

Body Height
1.1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MELEXIS MLX90316EGO-BCG-000-RE.

Datasheets:

melexistechnologiesnv-mlx90316kgobcg000re-datasheets-1199.pdf

melexistechnologiesnv-mlx91208ldccal000tu-datasheets-2043.pdf

MLX90316EGO-BCG-000-RE Overview

Linear position measuring sensors are protected from damage by being packaged in a 16-TSSOP (0.173, 4.40mm Width) package. An electronic component of this type is packaged in a Tape & Reel (TR). The supply voltage applied by the linear position measuring sensor should be 5.5V when it operates. It contains 16 terminations. Generally, an electronic part will draw 13.5mA of current.

MLX90316EGO-BCG-000-RE Features

Supply Voltage: 4.5V~5.5V
Operating Temperature: -40°C~85°C
Triaxis® Series
Mount: Surface Mount
Package / Case: 16-TSSOP (0.173, 4.40mm Width)
Mounting Type: Surface Mount

MLX90316EGO-BCG-000-RE Applications

There are a lot of Melexis Technologies NV
MLX90316EGO-BCG-000-RE Angle & Linear Position Measuring Sensors applications.

Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
Float-Level Sensor
