Microchip MRF89XAM9A-I/RM

Manufacturer No:

MRF89XAM9A-I/RM

Manufacturer:

Microchip

Package:

Module

Description:

SUB-GHZ TRANSCEIVER MODULE 915MHZ

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MRF89XAM9A-I/RM information

Microchip MRF89XAM9A-I/RM technical specifications, attributes, parameters and parts with similar specifications to Microchip MRF89XAM9A-I/RM.

Type
Parameter

Flash (KB)
0

Frequency Range
902 to 928

Link Budget
125.5

Data Range (Kbps) Max
40

Modulation
FSK, OOK

Operating Temp (°C) Min
-40

Operating Temp (°C) Max
85

Operating Voltage (V) Min
2.1

Operating Voltage (V) Max
3.6

RX Current Consumption (mA)
3

TX Current Consumption (mA)
25

RX Sensitivity (dBm)
-113

SRAM (KB)
0

TX Output Power (dBm)
12.5

Download datasheets and manufacturer documentation for Microchip MRF89XAM9A-I/RM.

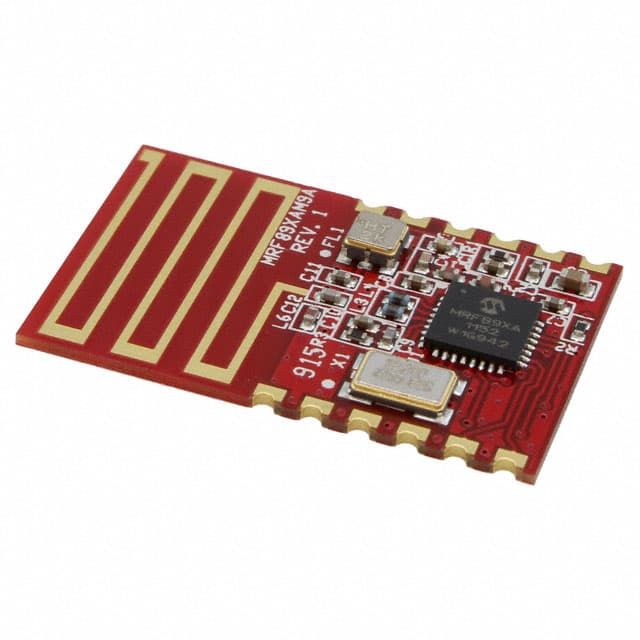

MRF89XAM9A is a 915MHz radio transceiver module. The MRF89XAM9A has an integrated PCB antenna, matching circuitry, and supports Microchip's proprietary protocol MiWi™ Development Environment. The MRF89XAM9A module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for low power wireless sensor networks, home automation, building automation and consumer applications.

Module designed from the MRF89XA integrated ultra low-power, Sub-GHz transceiver IC
Supports proprietary Sub-GHz wireless protocols
Simple, SPI Interface with Interrupts
Small size: 0.7" x 1.1" (17.8 mm x 27.9 mm), surface mountable
Integrated crystal, internal voltage regulator, matching circuitry and Printed Circuit Board (PCB) antenna
Easy integration into final product: minimize product development, quicker time to market
Compatible with Microchip’s Microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
End equipment using this module must be Regulatory certified for RF Emissions compliance
