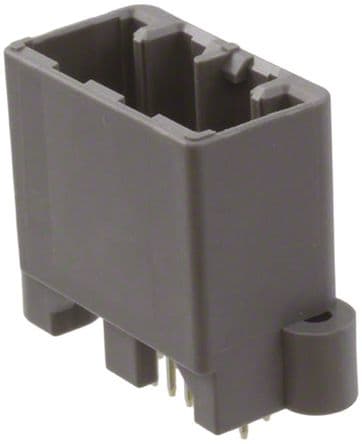

JAE MX34012UF1
JAE MX34012UF1

JAE MX34012UF1

Manufacturer No:

MX34012UF1

Manufacturer:

JAE

Package:

Description:

MX34 Series 2-Row Header Solder Brass Tube Through Hole Tin Syndiotactic Polystyrene (SPS), Glass Filled 12-Position Board to Cable/Wire 0.925 23.50mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MX34012UF1 information

JAE MX34012UF1 technical specifications, attributes, parameters and parts with similar specifications to JAE MX34012UF1.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Brass
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Syndiotactic Polystyrene (SPS), Glass Filled
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • Series
  • MX34
  • Published
  • 2006
  • Feature
  • Mounting Flange
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 12
  • Color
  • Grey
  • Applications
  • Automotive
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Locking Ramp
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Orientation
  • Straight
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.087 2.20mm
  • Insulation Color
  • Gray
  • Row Spacing - Mating
  • 0.118 (3.00mm)
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Length - Mating
  • 0.303 7.70mm
  • Insulation Resistance
  • 100MOhm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for JAE MX34012UF1.

Datasheets:

MX34012UF1 Overview


The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number MX34 belongs to the MX34 Series.In addition to Automotive, there are other possible applications for the device.In many ways, it is more powerful due to its Mounting Flange feature.This device operates at a temperature of -40°C~85°C.

MX34012UF1 Features


MX34 series


MX34012UF1 Applications


There are a lot of JAE Electronics
MX34012UF1 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
