ONSEMI NBSG16BAR2

Manufacturer No:

NBSG16BAR2

Manufacturer:

ONSEMI

Package:

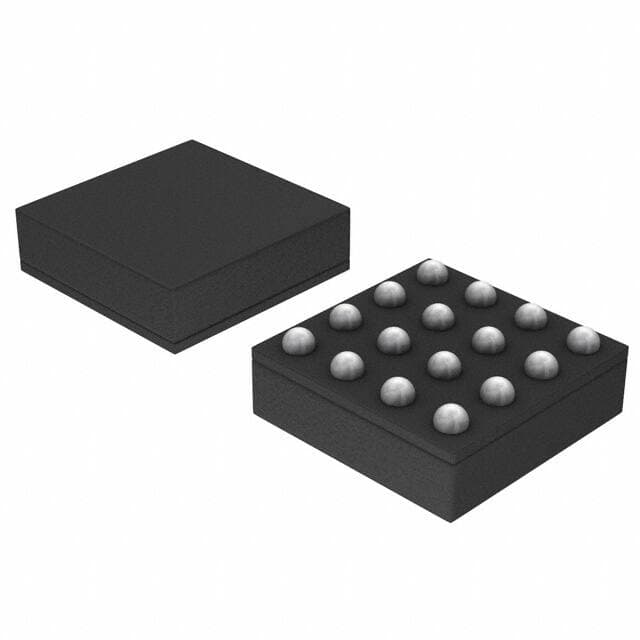

16-LBGA, FCBGA

Description:

16 Terminations Transceiver 16 Pin NBSG16 Specialized ICs 1 Functions 2.5V Min 2.375V V Max 3.465V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NBSG16BAR2 information

ONSEMI NBSG16BAR2 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NBSG16BAR2.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-LBGA, FCBGA

Number of Pins
16

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Type
Transceiver

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
Instrumentation

Additional Feature
NECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.465V

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
ECL

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
1mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
NBSG16

Pin Count
16

Qualification Status
Not Qualified

Power Supplies
+-2.5/+-3.3V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.465V

Min Supply Voltage
2.375V

Nominal Supply Current
29mA

Logic Function
AND, Receiver

Data Rate
12 Gbps

Differential Output
YES

Input Characteristics
DIFFERENTIAL

Driver Number of Bits
1

Receiver Number of Bits
1

Interface Standard
GENERAL PURPOSE

Receive Delay-Max
0.145 ns

Transmit Delay-Max
0.145 ns

Length
4mm

Height Seated (Max)
1.4mm

Width
4mm

Download datasheets and manufacturer documentation for ONSEMI NBSG16BAR2.

NBSG16BAR2 Overview

Integrated circuit is enclosed in a package 16-LBGA, FCBGA.A package containing integrated circuit is called Tape & Reel (TR).The way of mounting integrated circuit is Surface Mount.Various integrated circuits use this type of Transceiver.Search the NBSG16 family for similar integrated circuit systems.Putting the ICs in Instrumentation is appropriate.It has 16 terminations in total.The ICs applications has a total of 16 pins.2.5V should be used for this logic gate IC.Surface Mount is suggested as the mounting point for this ICs application.The integrated circuit chip's temperature should not be higher than 85°C when you use it.integrated circuit systems should not operate below -40°C.16 pins are on integrated circuit chip in total.It is possible to operate this integrated circuit at a voltage of 3.465V.There should be no voltage lower than 2.375V for this integrated circuit.Line Driver or Receivers is its subcategory.This ICs complete can deliver voltage at +-2.5/+-3.3V.This integrated circuit board includes the following additional features:NECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.465V.

NBSG16BAR2 Features

Applications : Instrumentation
Supply power of +-2.5/+-3.3V

NBSG16BAR2 Applications

There are a lot of ON Semiconductor
NBSG16BAR2 Specialized ICs applications.

MP3 Players
Secure Download and Boot
Ecosystem Control
Anti-cloning
Message Security
µP Switch Interfacing
Industrial Instruments
PC-Based Instruments
Portable Instruments
Membrane Keypads
