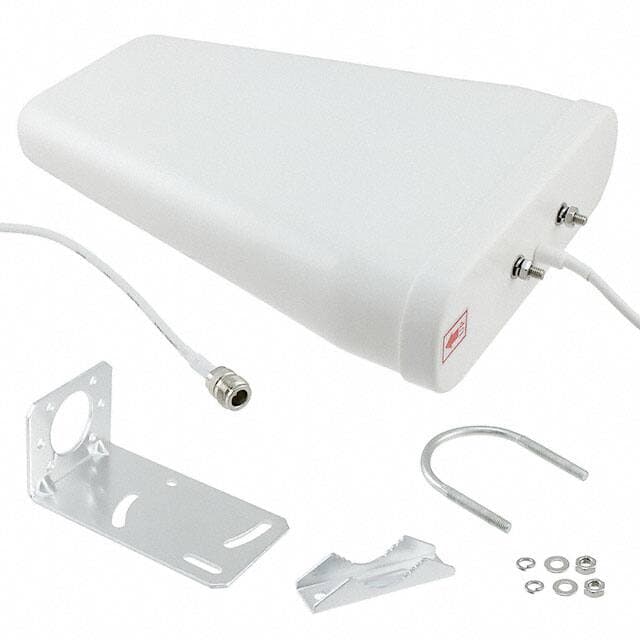

Siretta Ltd OSCAR18/X/NF/S/S/22

Manufacturer No:

OSCAR18/X/NF/S/S/22

Manufacturer:

Package:

Description:

6 Bands Yagi Wide B Bracket Mount N Type Female 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 2.4GHz 10dBi Bulk 2.559 65.00mm Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OSCAR18/X/NF/S/S/22 information

Siretta Ltd OSCAR18/X/NF/S/S/22 technical specifications, attributes, parameters and parts with similar specifications to Siretta Ltd OSCAR18/X/NF/S/S/22.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Bracket Mount

Packaging
Bulk

Series
OSCAR 18

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
N Type Female

Applications
Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee?

Frequency
2.5GHz

Gain
10dBi

RF Family/Standard
802.15.4, Bluetooth, Cellular, Navigation, WiFi

Antenna Type
Yagi

VSWR
1.5

Number of Bands
6

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 2.4GHz

Height (Max)
2.559 65.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Siretta Ltd OSCAR18/X/NF/S/S/22.

Datasheets:

sirettaltd-oscar18xnfss22-datasheets-7841.pdf

sirettaltd-asma300b174l13-datasheets-0900.pdf

OSCAR18/X/NF/S/S/22 Overview

Bracket Mount makes it suitable for general RF Antennas.It is a Antenna RF from the OSCAR 18 series.The RF modulator is packaged in Bulk solid enclosure.

OSCAR18/X/NF/S/S/22 Features

With Bracket Mount
OSCAR 18 series

OSCAR18/X/NF/S/S/22 Applications

There are a lot of Siretta Ltd
OSCAR18/X/NF/S/S/22 RF Antennas applications.

Lightning strikes
Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission

User Guide
