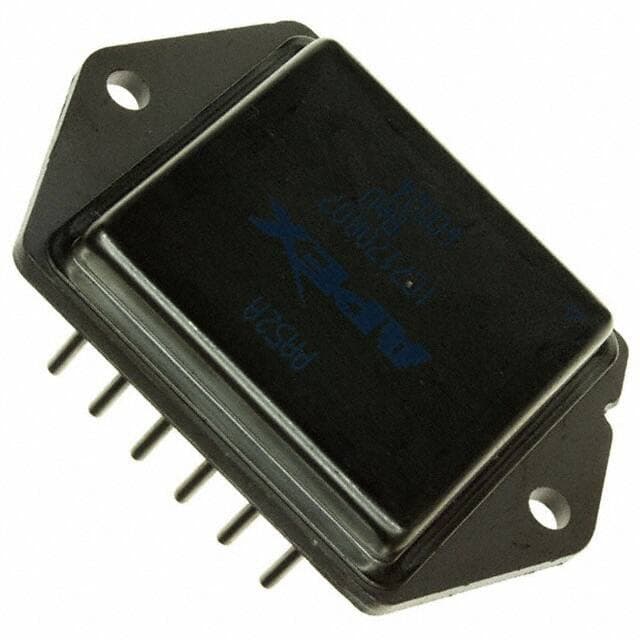

APEX PA52A

Manufacturer No:

PA52A

Manufacturer:

APEX

Package:

12-DIP Module

Description:

80A per Channel 10pA 100 dB Instrumentational OP Amps 0.00005μA 6V~200V ±3V~100V PA52 12 Pins 12-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA52A information

APEX PA52A technical specifications, attributes, parameters and parts with similar specifications to APEX PA52A.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-DIP Module

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifiers

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
30V

Terminal Pitch
5.08mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA52

Pin Count
12

Number of Circuits
1

Operating Supply Current
30mA

Supply Current-Max
36mA

Slew Rate
50V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
100 dB

Current - Input Bias
10pA

Voltage - Supply, Single/Dual (±)
6V~200V ±3V~100V

Output Current per Channel
80A

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
3MHz

Neg Supply Voltage-Nom (Vsup)
-30V

Unity Gain BW-Nom
3000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Micropower
NO

Bias Current-Max (IIB) @25C
0.00005μA

Programmable Power
NO

Wideband
NO

Power
YES

Download datasheets and manufacturer documentation for APEX PA52A.

Datasheets:

apexmicrotechnology-pa52-datasheets-2150.pdf

PA52A Overview

It is packaged in an 12-DIP Module-case that protects the operational amplifiers from damage. An op amp of this type is a Power-type. As far as the packaging is concerned, buffer op amp is delivered in a Tube case. It is estimated that there will be at least 12 terminations this year. A total of 12 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 30V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifiers op amp ic can be identified by the fact that this is a type of Operational Amplifiers device. Op amp ic rates 2mV for input offset voltage. This electronic part is recommended for mounting type Through Hole. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of -25°C~85°C. A supply current of 30mA can be used to operate this linear amplifier. This op amp ic has 1 circuits. Buffer op amp series numbers are indicated by the Apex Precision Power®.
