DIODES PAM8904EGPR

Manufacturer No:

PAM8904EGPR

Manufacturer:

DIODES

Package:

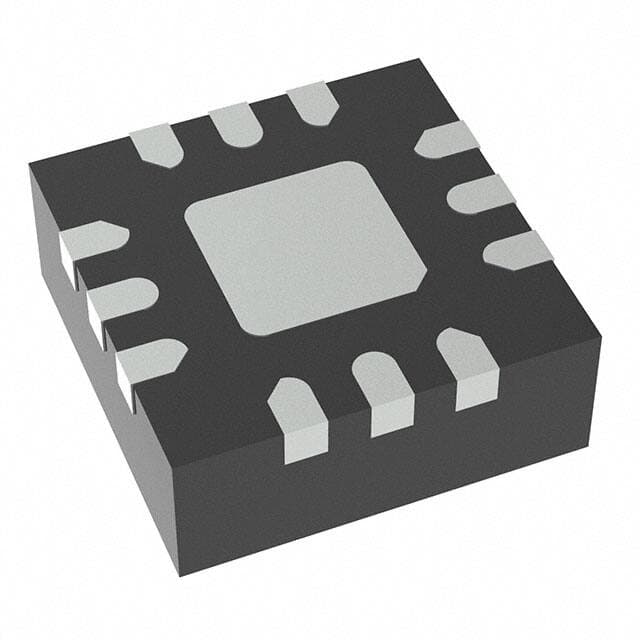

12-WFQFN Exposed Pad

Description:

Consumer Circuit,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PAM8904EGPR information

DIODES PAM8904EGPR technical specifications, attributes, parameters and parts with similar specifications to DIODES PAM8904EGPR.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
DIODES INC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
8 Weeks

Date Of Intro
2019-06-13

Samacsys Manufacturer
Diodes Incorporated

Consumer IC Type
CONSUMER CIRCUIT

JESD-30 Code
S-XQCC-N12

JESD-609 Code
e3

Length
2 mm

Number of Functions
1

Number of Terminals
12

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
UNSPECIFIED

Package Code
HVQCCN

Package Equivalence Code
LCC12,.08SQ,16

Package Shape
SQUARE

Package Style
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
260

Screening Level
AEC-Q100

Supply Voltage-Max (Vsup)
5.5 V

Supply Voltage-Min (Vsup)
1.5 V

Surface Mount
YES

Terminal Finish
MATTE TIN

Terminal Form
NO LEAD

Terminal Pitch
0.4 mm

Terminal Position
QUAD

Width
2 mm

Download datasheets and manufacturer documentation for DIODES PAM8904EGPR.

PAM8904EGPR Overview

Package 12-WFQFN Exposed Pad contains the ICs.A package named Tape & Reel (TR) contains integrated circuit.Mounting is done using the Surface Mount method.Integrated circuit belongs to the class Piezo Sounder Driver.In Health, Home, Security, the ICs is appropriate.

PAM8904EGPR Features

Applications : Health, Home, Security

PAM8904EGPR Applications

There are a lot of Diodes Incorporated
PAM8904EGPR Specialized ICs applications.

PDAs and Palmtop Devices
MP3 Players
Secure Download and Boot
Ecosystem Control
Anti-cloning
Message Security
µP Switch Interfacing
Industrial Instruments
PC-Based Instruments
Portable Instruments
