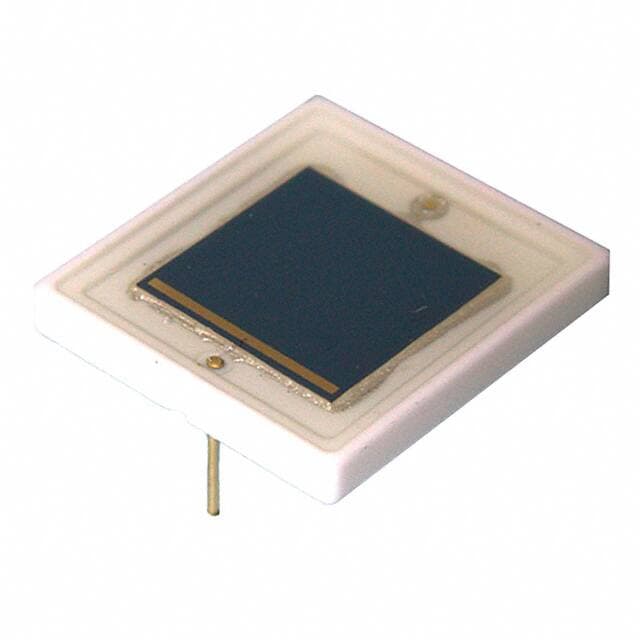

Advanced Photonix PDB-C110

Manufacturer No:

PDB-C110

Manufacturer:

Advanced Photonix

Package:

Radial

Description:

Through Hole -20°C~60°C Bulk Wavelength: 950nm Radial 75V 93.54mm2 13ns 10nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C110 information

Advanced Photonix PDB-C110 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C110.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Housing Material
Ceramic

Operating Temperature
-20°C~60°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
60°C

Min Operating Temperature
-20°C

Diode Type
PIN

Viewing Angle
120°

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
50V

Rise Time
25ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
10nA

Spectral Range
350nm ~ 1100nm

Active Area
93.54mm2

Current - Dark (Typ)
10nA

Responsivity @ nm
0.17 A/W @ 450nm

Height
2.03mm

Length
16.5mm

Width
15mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C110.

Datasheets:

advancedphotonix-pdbc110-datasheets-2157.pdf

PDB-C110 Overview

As a protective measure, these photodiodes are packaged in the Bulk. To ensure safety, the photodiodes are packaged in Radial packages. Reverse-bias photodiodes can withstand a maximum of 75V in continuous reverse-bias mode. Photodiodes in reverse-bias mode should not continuously exceed 75V. In order for photodiodes to operate, the temperature should not exceed 60°C. It should be noted that the photodiodes should be operated at -20°C as a minimum operating temperature. It's important to have 50V breakdown voltage to make photodiodes work. It is possible for a photodiode to produce 10nA even without light input.

PDB-C110 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~60°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 120°
Responsivity @ nm: 0.17 A/W @ 450nm

PDB-C110 Applications

There are a lot of Advanced Photonix
PDB-C110 Photodiodes applications.

Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
