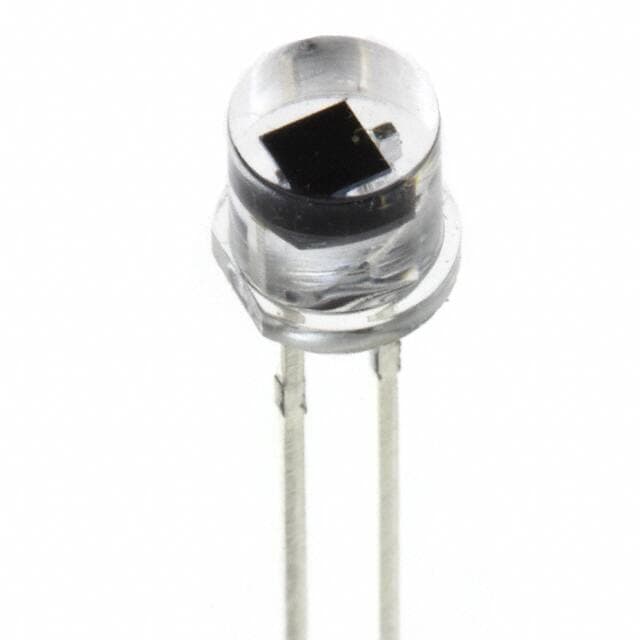

Advanced Photonix PDB-C139

Manufacturer No:

PDB-C139

Manufacturer:

Advanced Photonix

Package:

Radial, 5mm Dia (T 1 3/4)

Description:

Through Hole -40°C~80°C Bulk Wavelength: 950nm Radial, 5mm Dia (T 1 3/4) 50V 4.12mm2 5nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C139 information

Advanced Photonix PDB-C139 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C139.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, 5mm Dia (T 1 3/4)

Housing Material
Plastic

Operating Temperature
-40°C~80°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Lead Length
26.5mm

Diode Type
PIN

Viewing Angle
59°

Voltage - DC Reverse (Vr) (Max)
50V

Breakdown Voltage
25V

Rise Time
50ns

Max Reverse Voltage (DC)
50V

Wavelength
950nm

Dark Current
5nA

Spectral Range
700nm ~ 1100nm

Active Area
4.12mm2

Color - Enhanced
Blue

Diameter
5.8mm

Height
5.41mm

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C139.

Datasheets:

advancedphotonix-pdbc139-datasheets-5520.pdf

PDB-C139 Overview

To prevent damage, the photodiodes are packaged in a Bulk. Photodiodes are protected by Radial, 5mm Dia (T 1 3/4) packages in order to ensure their safety. Photodiodes can only withstand 50V in reverse-bias mode indefinitely. Continuous reverse-bias should not exceed 50V for the photodiodes. Ensure that the breakdown voltage of the photodiode is the same as 25V. Despite the absence of light input, a photodiode generates 5nA electrical current.

PDB-C139 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~80°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 700nm ~ 1100nm
Viewing Angle: 59°

PDB-C139 Applications

There are a lot of Advanced Photonix
PDB-C139 Photodiodes applications.

Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
Optical Analytics
Optical Switches
