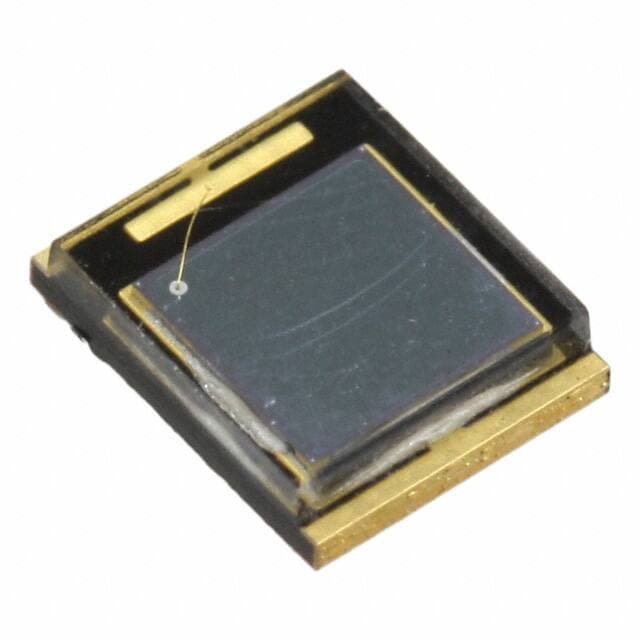

Advanced Photonix PDB-C171SM
Advanced Photonix PDB-C171SM

Advanced Photonix PDB-C171SM

Manufacturer No:

PDB-C171SM

Manufacturer:

Advanced Photonix

Package:

2-SMD, No Lead

Description:

Surface Mount -40°C~80°C Tape & Reel (TR) Wavelength: 660nm 2-SMD, No Lead 60V 7.67mm2 100ns 2nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C171SM information

Advanced Photonix PDB-C171SM technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C171SM.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2-SMD, No Lead
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2007
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 4 (72 Hours)
  • Diode Type
  • PIN
  • Viewing Angle
  • 130°
  • Response Time
  • 100ns
  • Voltage - DC Reverse (Vr) (Max)
  • 60V
  • Rise Time
  • 20ns
  • Max Reverse Voltage (DC)
  • 60V
  • Wavelength
  • 660nm
  • Dark Current
  • 2nA
  • Spectral Range
  • 400nm ~ 1050nm
  • Active Area
  • 7.67mm2
  • Color - Enhanced
  • Blue
  • Length
  • 5mm
  • Width
  • 4mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C171SM.

Datasheets:

PDB-C171SM Overview


These photodiodes are packaged in the Tape & Reel (TR) to protect them from damage. The photodiodes are put into 2-SMD, No Lead packages for safety protection. In reverse-bias mode on a continual basis, the maximum amount of voltage the photodiodes can withstand is 60V. The voltage for the photodiodes should not exceed 60V in reverse-bias mode on a continual basis. Even in the absence of light input, a photodiode occurs 2nA current.

PDB-C171SM Features


Moisture Sensitivity Level (MSL): 4 (72 Hours)
Operating Temperature: -40°C~80°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 400nm ~ 1050nm
Response Time: 100ns
Viewing Angle: 130°


PDB-C171SM Applications


There are a lot of Advanced Photonix
PDB-C171SM Photodiodes applications.


  • High speed photo detector
  • Infrared remote control
  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
