Sullins Connector Solutions PRPC012SBAN-M71RC
Sullins Connector Solutions PRPC012SBAN-M71RC

Sullins Connector Solutions PRPC012SBAN-M71RC

Manufacturer No:

PRPC012SBAN-M71RC

Manufacturer:

Sullins Connector Solutions

Package:

Description:

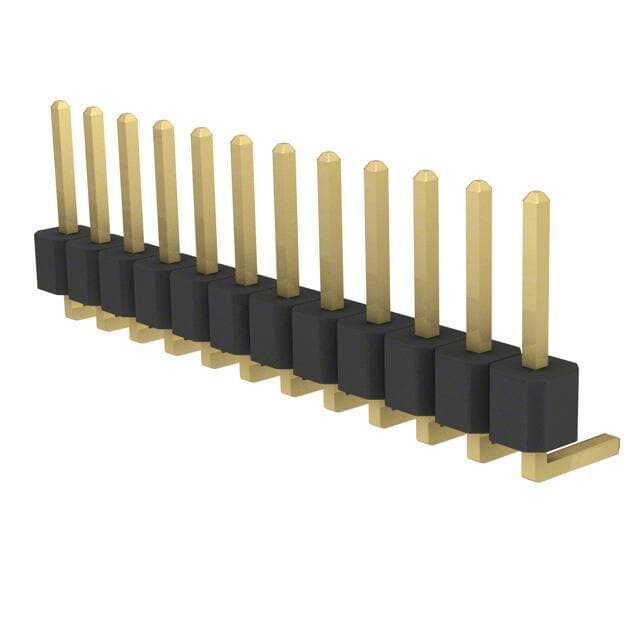

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PRPC012SBAN-M71RC information

Sullins Connector Solutions PRPC012SBAN-M71RC technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions PRPC012SBAN-M71RC.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Body Breadth
  • 0.098 inch
  • Body Depth
  • 0.158 inch
  • Body Length
  • 1.2 inch
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • AU
  • Contact Finish Termination
  • GOLD
  • Contact Gender
  • MALE
  • Contact Material
  • BRASS
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 20 mΩ
  • Contact Style
  • SQ PIN-SKT
  • Dielectric Withstanding Voltage
  • 1000VAC V
  • Filter Feature
  • NO
  • Insulation Resistance
  • 5000000000 Ω
  • Insulator Color
  • BLACK
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • JESD-609 Code
  • e4
  • Mating Contact Pitch
  • 0.1 inch
  • Mounting Style
  • RIGHT ANGLE
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 1
  • Number of Rows Loaded
  • 1
  • Operating Temperature-Max
  • 105 °C
  • Operating Temperature-Min
  • -40 °C
  • PCB Contact Pattern
  • RECTANGULAR
  • Plating Thickness
  • FLASH inch
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.12 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 12

Download datasheets and manufacturer documentation for Sullins Connector Solutions PRPC012SBAN-M71RC.

Datasheets:

Environmental Information:

PRPC012SBAN-M71RC Overview


It comes in a Header, Breakaway package.Through Hole, Right Angle is the mounting type of the device.We pack the product in a Bulk case.This part is mounted by Through Hole. -40°C~105°C Operating Temperature is the default.

PRPC012SBAN-M71RC Features




PRPC012SBAN-M71RC Applications


There are a lot of Sullins Connector Solutions
PRPC012SBAN-M71RC Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
