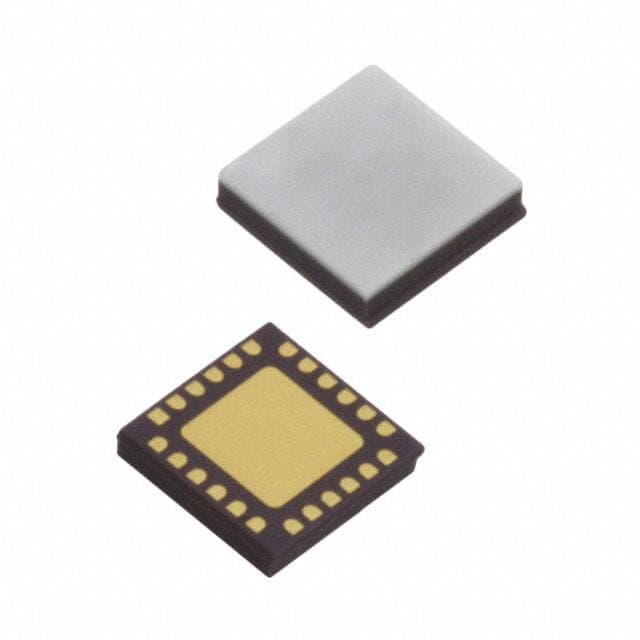

Qorvo RFVC1802SQ

Manufacturer No:

RFVC1802SQ

Manufacturer:

Qorvo

Package:

24-TFQFN Exposed Pad

Description:

Surface Mount 24-TFQFN Exposed Pad Bulk VCO, Buffer Amp 4GHz~8GHz General Purpose 24 Terminations

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RFVC1802SQ information

Qorvo RFVC1802SQ technical specifications, attributes, parameters and parts with similar specifications to Qorvo RFVC1802SQ.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-TFQFN Exposed Pad

Surface Mount
YES

Packaging
Bulk

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
24

ECCN Code
5A991.G

Terminal Finish
Gold (Au)

Additional Feature
BAG

HTS Code
8517.62.00.50

Subcategory
Other Oscillators

Supply Voltage
5V

Frequency
4GHz~8GHz

Function
VCO, Buffer Amp

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Physical Dimension
4.0mm x 4.0mm x 1.1mm

Operating Temperature (Min)
-40°C

Operating Frequency
8000MHz

Supply Voltage-Max (Vsup)
5.25V

Power Supplies
5V

Oscillator Type
VOLTAGE CONTROLLED OSCILLATOR

Supply Current-Max
70mA

Output Power
4dBm

Logic Function
Buffer

Control Voltage-Max
18V

RF Type
General Purpose

Phase Noise
-74 dBc/Hz

Modulation Sensitivity
270 MHz/V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Qorvo RFVC1802SQ.

RFVC1802SQ Overview

In the 4GHz~8GHz frequency range, RF modulator operates.RF IC benefit from this IC's enhanced 24-TFQFN Exposed Pad package.The Bulk package contains this RF modulator.Any Surface Mount-type PCB or development board can be used with this RF modulator.In this RF module, 24 terminations are integrated for driving and receiving signals from data.

RFVC1802SQ Features

Frequency of 4GHz~8GHz
24-TFQFN Exposed Pad package
Bulk
24 terminations

RFVC1802SQ Applications

There are a lot of RFMD
RFVC1802SQ RF Misc ICs and Modules applications.

PA predistortion
Amplitude modulation
Phase modulation
Variable matched attenuator
Phase shifter
Cellular base stations
Radio links
Fixed wireless access
Broadband/CATV
RF/IF analog multiplexer
