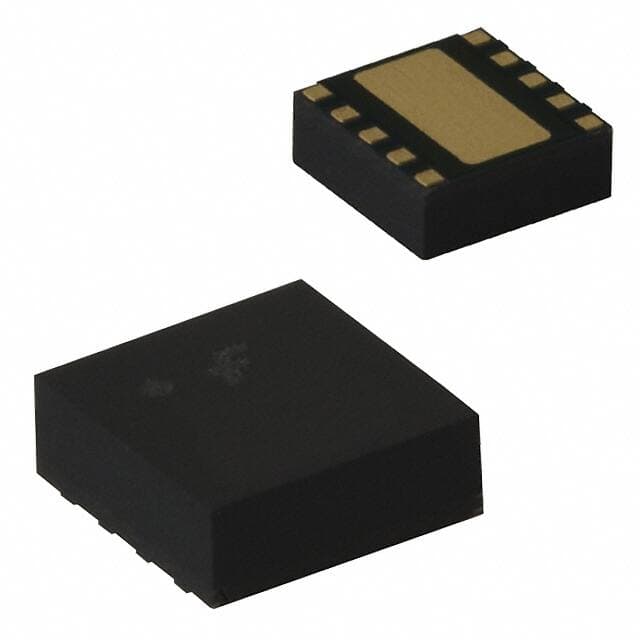

ONSEMI RMPA1959

Manufacturer No:

RMPA1959

Manufacturer:

ONSEMI

Package:

10-TDFN Exposed Pad

Description:

23dB ~ 25dB CDMA, CDMA2000, PCS Tape & Reel (TR) 1.85GHz~1.91GHz 3V~4.2V 4dB 50mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RMPA1959 information

ONSEMI RMPA1959 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI RMPA1959.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-TDFN Exposed Pad

Number of Pins
10

Packaging
Tape & Reel (TR)

Published
2011

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
85°C

Min Operating Temperature
-30°C

Voltage - Supply
3V~4.2V

Frequency
1.85GHz~1.91GHz

Operating Supply Voltage
3.4V

Number of Channels
1

Operating Supply Current
50mA

Gain
23dB ~ 25dB

RF Type
CDMA, CDMA2000, PCS

Noise Figure
4dB

Length
4mm

Width
4mm

Thickness
1.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI RMPA1959.

Datasheets:

onsemiconductor-rmpa1959-datasheets-4638.pdf

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

RMPA1959 Overview

RF Type CDMA, CDMA2000, PCS from the RF amplifier.The RF Amp' packaging Tape & Reel (TR) provides high reliability.The RF power Amplifier is convenient for international shipping since it is packaged in 10-TDFN Exposed Pad.mount Amplifiers RFing in Surface Mount is recommended.It is capable of supplying a voltage of 3V~4.2V volts.The supply current needs to be operated in the range of 50mA.high power RF Amplifiers with 10 pins are designed.A temperature of 85°C degrees Celsius is recommended.

RMPA1959 Features

RF Type CDMA, CDMA2000, PCS
3V~4.2V voltage
10 pins

RMPA1959 Applications

There are a lot of ON Semiconductor
RMPA1959 RF Amplifiers applications.

Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
