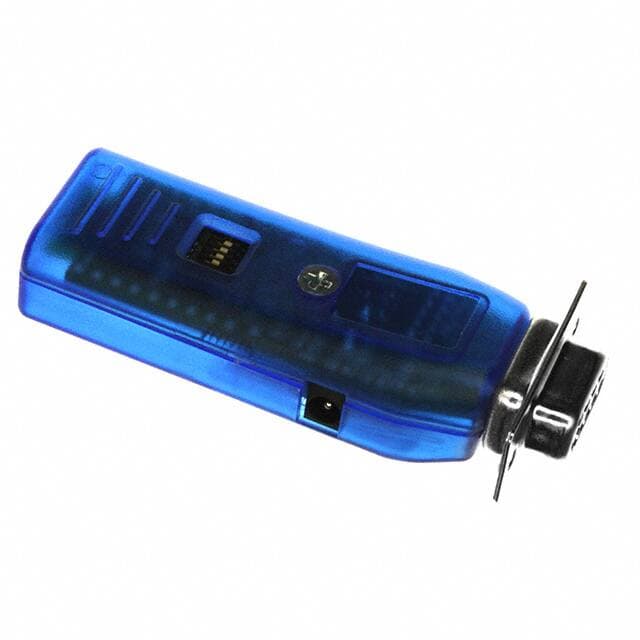

Microchip RN-240F
Microchip RN-240F

Microchip RN-240F

Manufacturer No:

RN-240F

Manufacturer:

Microchip

Package:

Module

Description:

RN Series Transceiver 2.4GHz UART, RS-232 Bluetooth v2.0+EDR, Class 1 234kBaud Module -80 dBm 5V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RN-240F information

Microchip RN-240F technical specifications, attributes, parameters and parts with similar specifications to Microchip RN-240F.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Package / Case
  • Module
  • Number of Pins
  • 9
  • Series
  • RN
  • Published
  • 2007
  • Feature
  • CSR BlueCore04 Chip/8Mb flash
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • General Purpose
  • Voltage - Supply
  • 4V~11V
  • Frequency
  • 2.4GHz
  • Function
  • Transceiver, Bluetooth
  • Operating Supply Voltage
  • 5V
  • Interface
  • UART, RS-232
  • Max Supply Voltage
  • 12V
  • Min Supply Voltage
  • 4V
  • Logic Function
  • Transceiver
  • Power - Output
  • 16dBm
  • Sensitivity
  • -80dBm
  • Data Rate (Max)
  • 234kBaud
  • Modulation or Protocol
  • Bluetooth v2.0+EDR, Class 1
  • Sensitivity (dBm)
  • -80 dBm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Microchip RN-240F.

Datasheets:

ConflictMineralStatement:

RN-240F Overview


An RF Transmitter available in package Module.There are several RF transmitter and receivers in the RN series, including this one.With a high supply voltage, 4V~11V can be operated more efficiently.Application General Purpose is available on the wireless RF transmitter.Operating at 85°C°C ensures RF Transmitter performance.The system must function at a minimum temperature of -40°C degrees Celsius in order to maintain its reliability.5V is the best voltage setting for maximum efficiency.

RN-240F Features


Module package
RN series
Minimum of -40°C°C


RN-240F Applications


There are a lot of Microchip Technology
RN-240F RF Transmitter applications.


  • WCDMA
  • TD-SCDMA
  • Optical transmission devices
  • Measuring for data transmission
  • Radio communication equipment
  • Measuring instruments
  • Cellular infrastructure
  • Microwave radios
  • Small aperture terminals (VSATs)
  • Intermediate frequency (IF)
