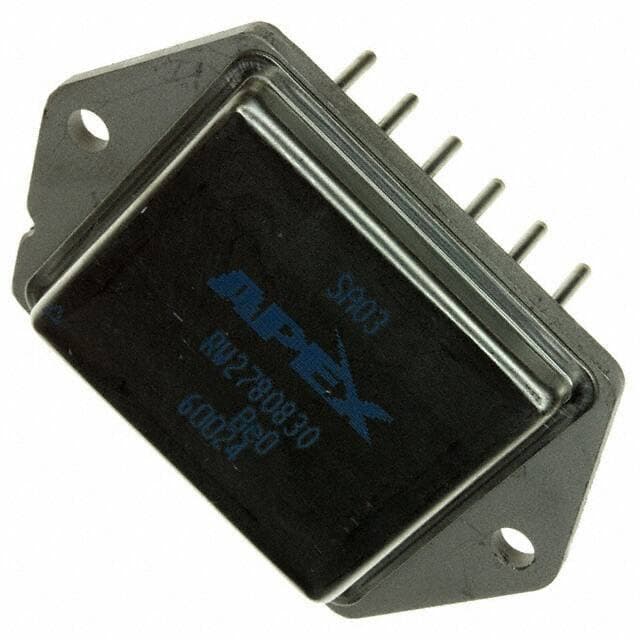

APEX SA03

Manufacturer No:

SA03

Manufacturer:

APEX

Package:

12-PowerDIP, Module

Description:

Bulk 12-PowerDIP, Module PWM 14V~16V Through Hole -55°C~150°C TJ DC Motors, Piezo Devices Half Bridge (2) Inductive 16V~100V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA03 information

APEX SA03 technical specifications, attributes, parameters and parts with similar specifications to APEX SA03.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-PowerDIP, Module

Operating Temperature
-55°C~150°C TJ

Packaging
Bulk

Series
Apex Precision Power®

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Applications
DC Motors, Piezo Devices

Technology
Power MOSFET

Voltage - Supply
14V~16V

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SA*

Pin Count
12

Qualification Status
Not Qualified

Interface
PWM

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Output Current
30A

Voltage - Load
16V~100V

Fault Protection
Current Limiting

Rds On (Typ)
160m ? (Max)

Current - Peak Output
40A

Load Type
Inductive

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SA03.

Datasheets:

apexmicrotechnology-sa03-datasheets-4704.pdf

SA03 Overview

Packaged using Bulk.Cost savings are achieved by including H bridge in the 12-PowerDIP, Module package.Based on 14V~16V, improved reliabilbridge drivery can be achieved.Mounted on Through Hole.In order for -55°C~150°C TJ to function normally, motor driver H bridge needs to be kept at a certain temperature.H bridge motor driver can be used for a variety of purposes, including DC Motors, Piezo Devices.Using Through Hole, the board is mounted.12 terminations are used to terminate transmission lines with H bridges that match their characteristic impedances.Its base H bridge ic number, SA*, is used to identify related H bridge ics.With a supply voltage of 15V, H bridge circuit operates.IC type BRUSH DC MOTOR CONTROLLER is used as H bridge circuit's analog IC.This is one of the types of electronic H-bridges in the Apex Precision Power® series.This is the maximum amount of current that can reach 40A.Through the pins of the power supply and output, there is a current of 30A.The 12 pins work together to provide this bridge driver with the functionality it requires.The Hbridge has 1 outputs.

SA03 Features

Available in 12-PowerDIP, Module Package / Case
Operating Temperature at the range of Through Hole
Interface IC Type : SA*
Subcategory: 40A

SA03 Applications

There are a lot of Apex Microtechnology
SA03 Full Bridge Drivers, Half-Bridge Drivers applications.

Home Appliances
High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
Workstations
High-Current DC-DC Point-of-Load Converters
Networking Microprocessor Voltage Regulators
