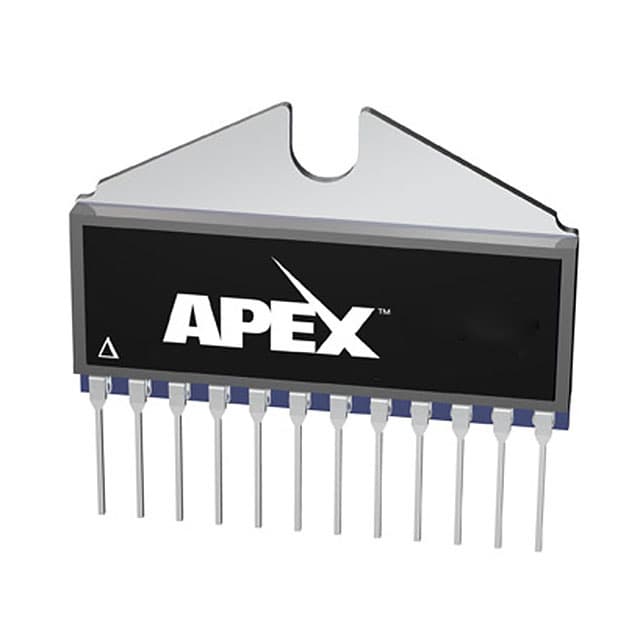

APEX SA110DP

Manufacturer No:

SA110DP

Manufacturer:

APEX

Package:

12-PowerSIP

Description:

Tube 12-PowerSIP Logic, PWM 12V~20V Through Hole -40°C~125°C TC AC Motors, DC Motors, DC-DC Converters, General Purpose Half Bridge Inductive 12V~20V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA110DP information

APEX SA110DP technical specifications, attributes, parameters and parts with similar specifications to APEX SA110DP.

Type
Parameter

Factory Lead Time
9 Weeks

Mounting Type
Through Hole

Package / Case
12-PowerSIP

Operating Temperature
-40°C~125°C TC

Packaging
Tube

Feature
Bootstrap Circuit

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
AC Motors, DC Motors, DC-DC Converters, General Purpose

Technology
MOSFET (Metal Oxide)

Voltage - Supply
12V~20V

Interface
Logic, PWM

Output Configuration
Half Bridge

Voltage - Load
12V~20V

Current - Output / Channel
20A

Fault Protection
UVLO

Rds On (Typ)
30m ? LS, 73m ? HS

Current - Peak Output
40A

Load Type
Inductive

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SA110DP.

Datasheets:

apexmicrotechnology-sa110dp-datasheets-4666.pdf

apexmicrotechnology-sa60-datasheets-3321.pdf

apexmicrotechnology-sa110dp-datasheets-4668.pdf

SA110DP Overview

Packaged using Tube.Cost savings are achieved by including H bridge in the 12-PowerSIP package.Based on 12V~20V, improved reliabilbridge drivery can be achieved.Mounted on Through Hole.In order for -40°C~125°C TC to function normally, motor driver H bridge needs to be kept at a certain temperature.H bridge motor driver can be used for a variety of purposes, including AC Motors, DC Motors, DC-DC Converters, General Purpose.Bootstrap Circuit is also one of full bridges specific characteristics.This is the maximum amount of current that can reach 40A.

SA110DP Features

Available in 12-PowerSIP Package / Case
Operating Temperature at the range of Through Hole
Subcategory: 40A

SA110DP Applications

There are a lot of Apex Microtechnology
SA110DP Full Bridge Drivers, Half-Bridge Drivers applications.

Home Appliances
High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
Workstations
High-Current DC-DC Point-of-Load Converters
Networking Microprocessor Voltage Regulators
