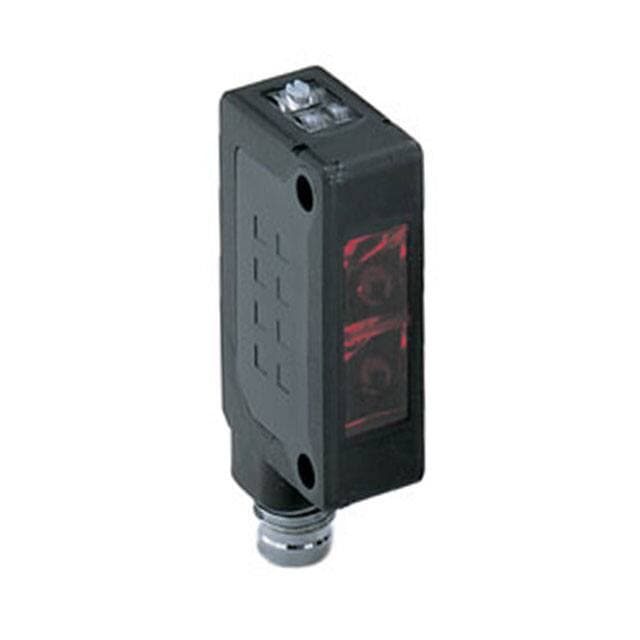

IDEC SA1E-BP1C

Manufacturer No:

SA1E-BP1C

Manufacturer:

IDEC

Package:

Description:

10V~30V SA1E Series Adjustable Reflective, Background Suppression 4-Pin -25°C~55°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA1E-BP1C information

IDEC SA1E-BP1C technical specifications, attributes, parameters and parts with similar specifications to IDEC SA1E-BP1C.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Brackets

Number of Pins
4

Operating Temperature
-25°C~55°C

Series
SA1E

Published
2006

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
10V~30V

Ingress Protection
IP67

Output Configuration
PNP

Output Current
100mA

Response Time
1ms

Adjustment Type
Adjustable

Sensing Distance
0.787 ~ 7.874 (20mm ~ 200mm)

Sensing Method
Reflective, Background Suppression

Connection Method
Connector

Light Source
Red LED

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for IDEC SA1E-BP1C.

SA1E-BP1C Overview

For reliable performance, the temperature of the photoelectric sensor should be set to -25°C~55°C. In order for these electronic components to work, they should be given 10V~30V voltage. For photoelectric sensors, 1ms is considered an ideal response time. To make the photoelectric sensor work properly, 4 pins must be connected. Photoelectric sensors require an output current of 100mA to operate.

SA1E-BP1C Features

Sensing Distance: 0.787 ~ 7.874 (20mm ~ 200mm)
4 pins
Response Time: 1ms
Operating Temperature: -25°C~55°C
SA1E Series

SA1E-BP1C Applications

There are a lot of IDEC
SA1E-BP1C Photoelectric Sensors applications.

Automotive industry
Mechanical engineering
Entrance and gate
Material handling
Pharmaceutical industry
Checking objects on production lines or conveyors
Counting small objects
Detecting colours
Monitoring bigger areas for objects with light grids
Measuring distance
