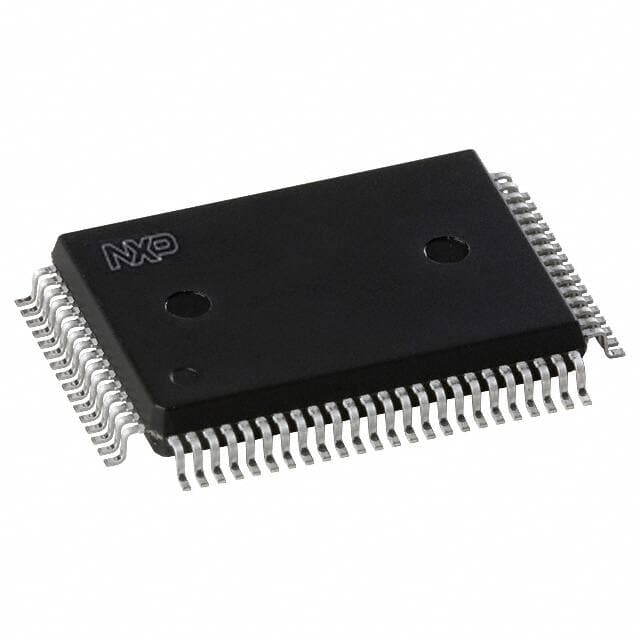

NXP SAA7706H/N210,557

Manufacturer No:

SAA7706H/N210,557

Manufacturer:

NXP

Package:

80-BQFP

Description:

0.8mm CPLD SAA7706 3.3V 80-BQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SAA7706H/N210,557 information

NXP SAA7706H/N210,557 technical specifications, attributes, parameters and parts with similar specifications to NXP SAA7706H/N210,557.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
80-BQFP

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2000

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

Type
Car Signal Processor

Terminal Finish
SILVER

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
SAA7706

Pin Count
80

JESD-30 Code
R-PQFP-G80

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Interface
I2C, I2S, LSB, SPDIF

Clock Frequency
0.4MHz

Boundary Scan
NO

Low Power Mode
NO

Format
FIXED POINT

Voltage - I/O
3.30V

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Source Url Status Check Date
2013-06-14 00:00:00

Length
20mm

Height Seated (Max)
3.2mm

Width
14mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP SAA7706H/N210,557.

Datasheets:

nxpusainc-saa7706hn107518-datasheets-4286.pdf

SAA7706H/N210,557 Overview

It is a kind of electronic component that comes in a package of 80-BQFP.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Car Signal Processor.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of -40°C~85°C TA, a normal operation is ensured.It refers to the analog voltage range of 3.30V that may be input or output.In order to use it, it has 80 terminations.Using 3.3V as the supply voltage, it operates.80 components have pins.The base part number SAA7706 allows identification of a wide range of related parts.0.4MHz is the clock frequency.
