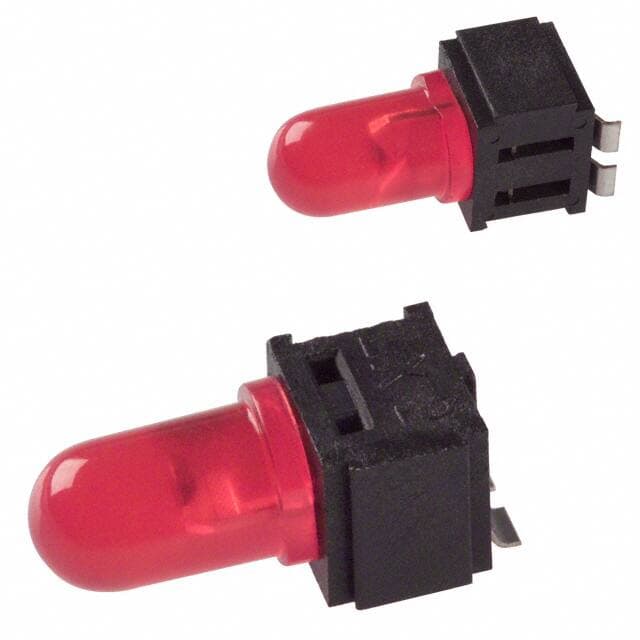

Lumex Opto/Components Inc. SMF-HM1530ID-509

Manufacturer No:

SMF-HM1530ID-509

Manufacturer:

Lumex Opto/Components Inc.

Package:

Description:

LED 5MM RA 635NM RED DIFF SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMF-HM1530ID-509 information

Lumex Opto/Components Inc. SMF-HM1530ID-509 technical specifications, attributes, parameters and parts with similar specifications to Lumex Opto/Components Inc. SMF-HM1530ID-509.

Type
Parameter

Mfr
Lumex Opto/Components Inc.

Package
Bulk

Product Status
Active

Color
Red

Wavelength - Peak
635nm

Configuration
Single

Current
20mA

Millicandela Rating
30mcd

Viewing Angle
60°

Lens Type
Diffused, Tinted

Voltage Rating
2V

Mounting Type
Surface Mount, Right Angle

Base Product Number
SMF-HM1530

Download datasheets and manufacturer documentation for Lumex Opto/Components Inc. SMF-HM1530ID-509.

The Lumex SMF-HM1530ID-509 is a 5mm red diffused surface mount LED with a peak wavelength of 635nm. It is designed for use in circuit board indicators, arrays, light bars, and bar graphs.

Features of the Lumex SMF-HM1530ID-509 include a wide viewing angle of 120°, a low forward voltage of 2.1V, and a high luminous intensity of 10,000mcd. It also has a long life expectancy of up to 100,000 hours.

Applications of the Lumex SMF-HM1530ID-509 include backlighting, indicators, and displays in a variety of electronic devices such as TVs, computers, and mobile phones. It is also suitable for use in automotive, medical, and industrial applications.
