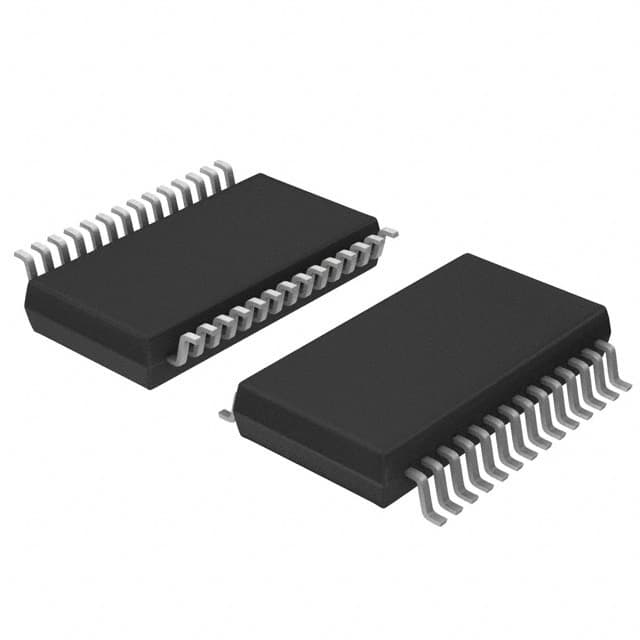

MAXLINEAR SP213EEA-L/TR
MAXLINEAR SP213EEA-L/TR

MAXLINEAR SP213EEA-L/TR

Manufacturer No:

SP213EEA-L/TR

Manufacturer:

MAXLINEAR

Package:

28-SSOP (0.209, 5.30mm Width)

Description:

28 Terminations Receivers 4 Bits 4/5 Drivers/Receivers 4 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP213EEA-L/TR information

MAXLINEAR SP213EEA-L/TR technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR SP213EEA-L/TR.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 28-SSOP (0.209, 5.30mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Type
  • Transceiver
  • Terminal Finish
  • Matte Tin (Sn)
  • Additional Feature
  • LOW POWER SHUTDOWN AND TRI-STATE ENABLE AND WAKE-UP FUNCTION
  • HTS Code
  • 8542.39.00.01
  • Technology
  • CMOS
  • Voltage - Supply
  • 4.5V~5.5V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 4
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • JESD-30 Code
  • R-PDSO-G28
  • Data Rate
  • 230kbps
  • Differential Output
  • NO
  • Protocol
  • RS232
  • Input Characteristics
  • SCHMITT TRIGGER
  • Number of Drivers/Receivers
  • 4/5
  • Driver Number of Bits
  • 4
  • Receiver Number of Bits
  • 5
  • Duplex
  • Full
  • Receiver Hysteresis
  • 500mV
  • Interface Standard
  • EIA-232; V.28
  • Receive Delay-Max
  • 1500 ns
  • Length
  • 10.2mm
  • Height Seated (Max)
  • 1.99mm
  • Width
  • 5.29mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for MAXLINEAR SP213EEA-L/TR.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

PCN Other:

SP213EEA-L/TR Overview


This driver chip is excellent for driving common LEDs due to its enhanced 28-SSOP (0.209, 5.30mm Width) package.The package of this receiver is Tape & Reel (TR).It has proved to be a valuable component for a variety of applications since it is a Transceiver can transceiver.On any Surface Mount-type PCB or development board, you can install this wide receiver.It takes 4.5V~5.5V from the power supply to run this differential driver.During operation, this electronic part may have up to 4/5 eligible receivers/drivers.IC receiver is designed for applications with a temperature of -40°C~85°C.Driver ICs in this category can operate efficiently with a supply voltage range of 5V.Wide receiver has 28 terminations built in for driving or receiving signals from data.It provided a 4-bit resolution capability with this ic receiver.As a general rule, this receiver has a resolution of 5 bits that is usually specified.ICs with LOW POWER SHUTDOWN AND TRI-STATE ENABLE AND WAKE-UP FUNCTION functions also improve the overall stability and accuracy of signal management.
