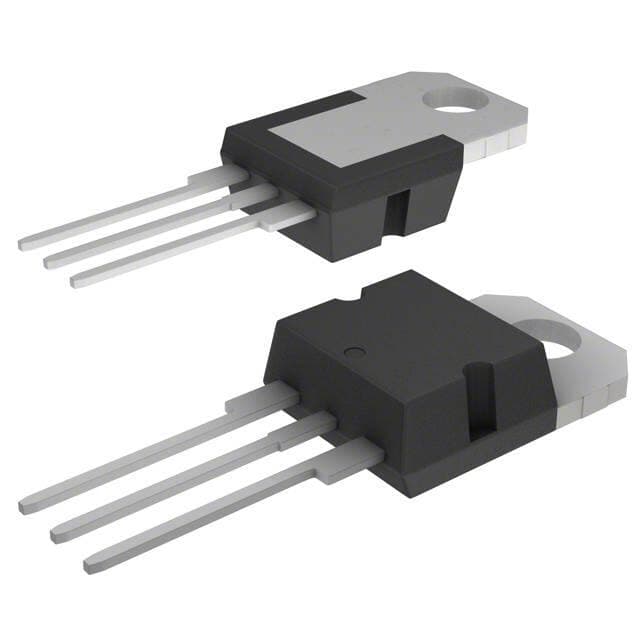

ST STGP15H60DF
ST STGP15H60DF

ST STGP15H60DF

Manufacturer No:

STGP15H60DF

Manufacturer:

ST

Package:

TO-220-3

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STGP15H60DF information

ST STGP15H60DF technical specifications, attributes, parameters and parts with similar specifications to ST STGP15H60DF.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-220-3
  • Number of Pins
  • 3
  • Weight
  • 6.000006g
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tube
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Max Power Dissipation
  • 115W
  • Base Part Number
  • STGP15
  • Element Configuration
  • Single
  • Input Type
  • Standard
  • Power - Max
  • 115W
  • Collector Emitter Voltage (VCEO)
  • 600V
  • Max Collector Current
  • 30A
  • Reverse Recovery Time
  • 103 ns
  • Collector Emitter Breakdown Voltage
  • 600V
  • Collector Emitter Saturation Voltage
  • 1.6V
  • Test Condition
  • 400V, 15A, 10 ?, 15V
  • Vce(on) (Max) @ Vge, Ic
  • 2V @ 15V, 15A
  • Gate Charge
  • 81nC
  • Current - Collector Pulsed (Icm)
  • 60A
  • Td (on/off) @ 25°C
  • 24.5ns/118ns
  • Switching Energy
  • 136?J (on), 207?J (off)
  • Height
  • 15.75mm
  • Length
  • 10.4mm
  • Width
  • 4.6mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST STGP15H60DF.

Datasheets:

STGP15H60DF IGBT Description


The STGP15H60DF is a member of the H series of IGBTs, which offers the best balance of conduction and switching losses for high switching frequency converter efficiency. A sophisticated proprietary trench gate field-stop structure was used to create the device. In addition, a slightly positive VCE(sat) temperature coefficient and a very tight parameter distribution make paralleling safer.



STGP15H60DF IGBT Features


Safe paralleling

Short-circuit rated

Ultrafast soft recovery antiparallel diode

High-speed switching

Tight parameters distribution

Low thermal resistance



STGP15H60DF IGBT Applictaions


Fan

Motor Control

AirCon

Washing Machine

Compressor

Home Appliance
