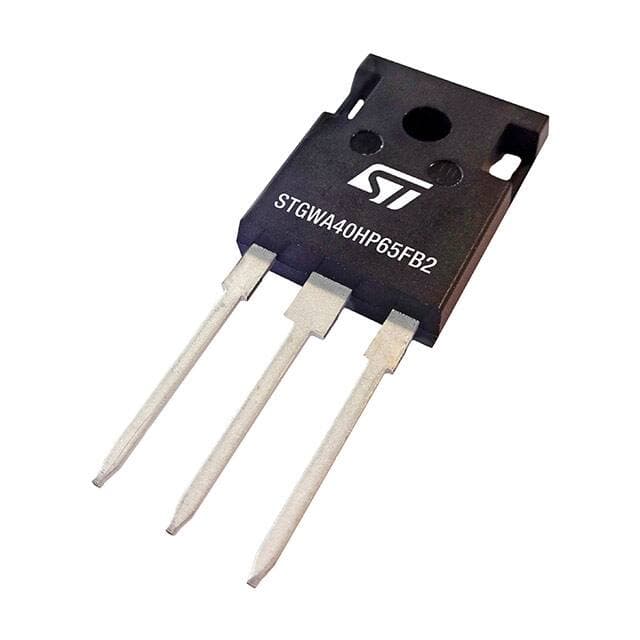

ST STGWA40HP65FB2
ST STGWA40HP65FB2

ST STGWA40HP65FB2

Manufacturer No:

STGWA40HP65FB2

Manufacturer:

ST

Package:

TO-247-3

Description:

Trench gate field-stop, 650 V, 40 A, high-speed HB2 series IGBT in a TO-247 long leads package

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STGWA40HP65FB2 information

ST STGWA40HP65FB2 technical specifications, attributes, parameters and parts with similar specifications to ST STGWA40HP65FB2.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • Factory Lead Time
  • 15 Weeks
  • Samacsys Manufacturer
  • STMicroelectronics
  • Case Connection
  • COLLECTOR
  • Collector Current-Max (IC)
  • 72 A
  • Collector-Emitter Voltage-Max
  • 650 V
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Gate-Emitter Thr Voltage-Max
  • 7 V
  • Gate-Emitter Voltage-Max
  • 20 V
  • JEDEC-95 Code
  • TO-247
  • JESD-30 Code
  • R-PSFM-T3
  • Number of Elements
  • 1
  • Number of Terminals
  • 3
  • Operating Temperature-Max
  • 175 °C
  • Operating Temperature-Min
  • -55 °C
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Shape
  • RECTANGULAR
  • Package Style
  • FLANGE MOUNT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Polarity/Channel Type
  • N-CHANNEL
  • Surface Mount
  • NO
  • Terminal Form
  • THROUGH-HOLE
  • Terminal Position
  • SINGLE
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Transistor Application
  • POWER CONTROL
  • Transistor Element Material
  • SILICON
  • Turn-off Time-Nom (toff)
  • 189 ns
  • VCEsat-Max
  • 2 V

Download datasheets and manufacturer documentation for ST STGWA40HP65FB2.

Datasheets:

STGWA40HP65FB2 Description


The STGWA40HP65FB2 from STMicroelectronics' newest IGBT 650 V HB2 series is an advancement of the advanced patented trench gate field-stop construction. The HB2 series' performance is optimized in terms of conduction, thanks to improved VCE(sat) behaviour at low current values, as well as reduced switching energy. A diode used solely for safety is co-packaged antiparallel with the IGBT.



STGWA40HP65FB2 Features


  • Tight parameter distribution

  • Low thermal resistance

  • Positive VCE(sat) temperature coefficient

  • Maximum junction temperature : TJ = 175 °C

  • Low VCE(sat) = 1.55 V(typ.) @ IC = 40 A

  • Co-packaged protection diode

  • Minimized tail current



STGWA40HP65FB2 Applications


  • Power factor correction

  • Welding
