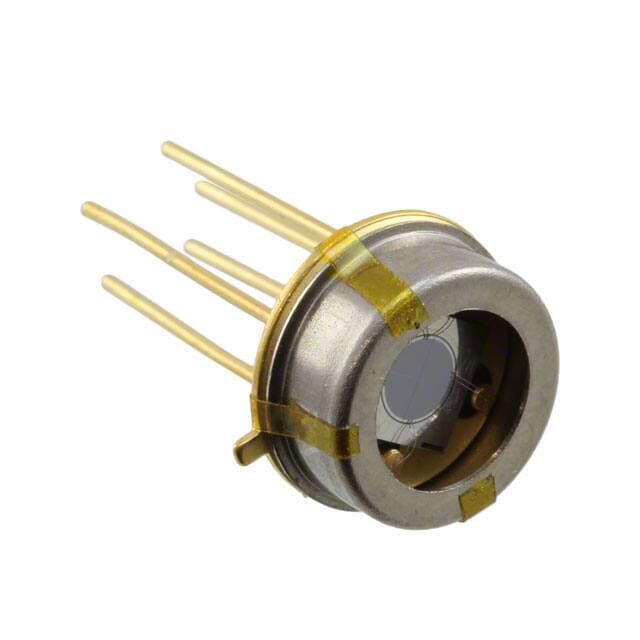

Opto Diode Corp SXUVPS4

Manufacturer No:

SXUVPS4

Manufacturer:

Opto Diode Corp

Package:

TO-5-3

Description:

Through Hole -10°C~40°C Tray TO-5-3 20V 1.25mm2 (x4) 1?s

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SXUVPS4 information

Opto Diode Corp SXUVPS4 technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp SXUVPS4.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Through Hole

Package / Case
TO-5-3

Operating Temperature
-10°C~40°C

Packaging
Tray

Series
SXUV

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
40°C

Min Operating Temperature
-10°C

Viewing Angle
45°

Response Time
1?s

Voltage - DC Reverse (Vr) (Max)
20V

Max Reverse Voltage (DC)
20V

Active Area
1.25mm2 (x4)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Opto Diode Corp SXUVPS4.

Datasheets:

optodiodecorp-sxuvps4-datasheets-5889.pdf

SXUVPS4 Overview

The Tray protects these photodiodes from damage. In order to ensure safety, the photodiodes are packaged in TO-5-3 packages. The maximum voltage the photodiodes can withstand in reverse-bias mode is 20V. A continuous reverse-bias voltage of 20V should be maintained for the photodiodes. Photodiode operation should take place at temperatures below 40°C. There should, however, be a minimum operating temperature of -10°C for the photodiodes.

SXUVPS4 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -10°C~40°C
Packaging: Tray
Response Time: 1?s
Viewing Angle: 45°

SXUVPS4 Applications

There are a lot of Opto Diode Corp
SXUVPS4 Photodiodes applications.

Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
