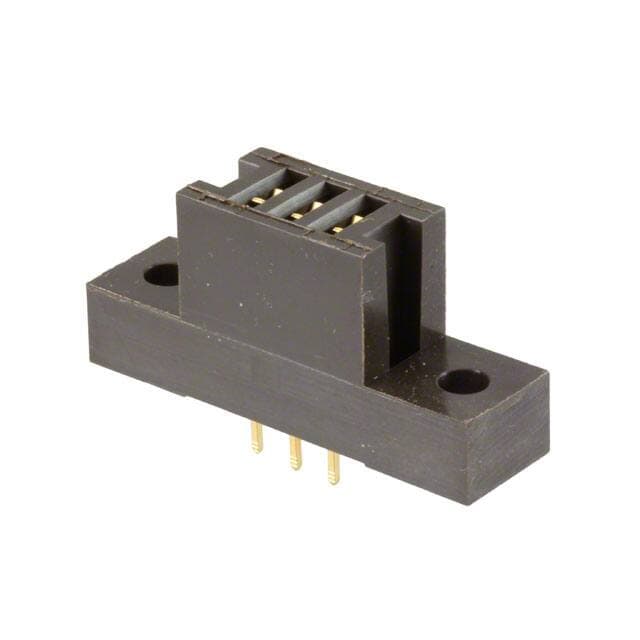

Sullins Connector Solutions TMJ03DKSD-S1512

Manufacturer No:

TMJ03DKSD-S1512

Manufacturer:

Sullins Connector Solutions

Package:

TO-254

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMJ03DKSD-S1512 information

Sullins Connector Solutions TMJ03DKSD-S1512 technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions TMJ03DKSD-S1512.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-254

Number of Pins
3

Housing Material
Polyphenylene Sulfide (PPS)

Number of Positions or Pins (Grid)
3 (Rectangular)

Contact Material - Mating
Beryllium Copper

Contact Material - Post
Beryllium Copper

Operating Temperature
-50°C~175°C

Packaging
Tray

Published
2013

Feature
Flange

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Type
Transistor, TO-254

Max Operating Temperature
175°C

Min Operating Temperature
-50°C

Contact Finish - Mating
Gold

Current Rating (Amps)
3A

Current Rating
3A

Pitch - Mating
0.150 3.81mm

Contact Resistance
30mOhm

Pitch - Post
0.150 3.81mm

Contact Finish Thickness - Mating
30.0?in 0.76?m

Contact Finish Thickness - Post
30.0?in 0.76?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sullins Connector Solutions TMJ03DKSD-S1512.

Datasheets:

sullinsconnectorsolutions-tmj03dksds1512-datasheets-7941.pdf

Environmental Information:

sullinsconnectorsolutions-wct001mct-environmentalinformation-6146.pdf

No product details available
