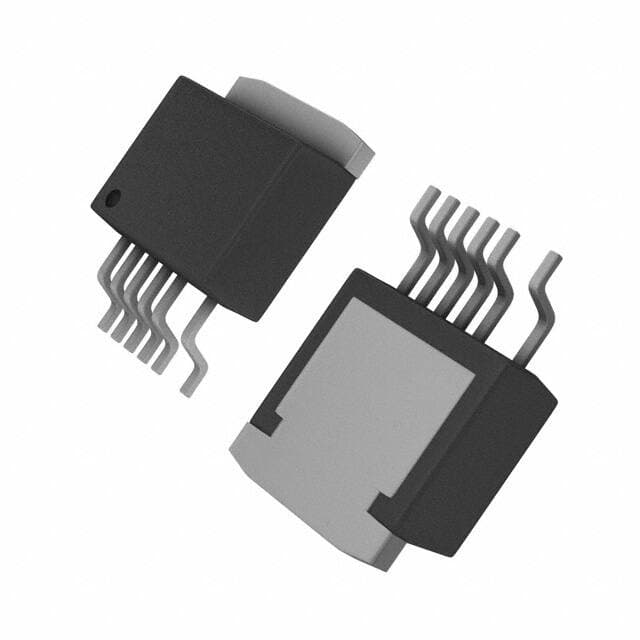

Power Integrations TOP246R-TL

Manufacturer No:

TOP246R-TL

Manufacturer:

Power Integrations

Package:

TO-263-7, D2Pak (6 Leads + Tab), TO-263CB

Description:

6 Terminations AC to DC power converter TOPSwitch®-GX Series 66kHz~132kHz Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP246R-TL information

Power Integrations TOP246R-TL technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP246R-TL.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
TO-263-7, D2Pak (6 Leads + Tab), TO-263CB

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
TOPSwitch®-GX

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
TIN LEAD

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
64W

Technology
CMOS

Terminal Position
SINGLE

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
1.27mm

Pin Count
4

Output Voltage
12V

Voltage
700V

Analog IC - Other Type
SWITCHING REGULATOR

Nominal Supply Current
2.2mA

Control Features
Frequency Control

Topology
Flyback

Control Mode
VOLTAGE-MODE

Output Current-Max
4.32A

Frequency - Switching
66kHz~132kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
83 %

Max Supply Voltage (AC)
265V

Duty Cycle
66.5%

Output Isolation
Isolated

Min Supply Voltage (AC)
85V

Length
10.29mm

Height Seated (Max)
4.7mm

Width
8.405mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP246R-TL.

TOP246R-TL Overview

This ac to dc converter is embedded in package TO-263-7, D2Pak (6 Leads + Tab), TO-263CB .The AC/DC power converter is available in Tape & Reel (TR) .There is a AC/DC converter mounted in the way of Surface Mount .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .66kHz~132kHz is the switching frequency.In total, there are 6 terminations.There are 4 pins on the ac-dc converter.This AC to DC converter belongs to the TOPSwitch®-GX manufacturer family.The ac to dc conversions are included in Switching Regulator or Controllers .There is 12V voltage output from it.An amount of current of 4.32A is the maximum that can be supplied to the ac to dc inverter.There is a minimum supply voltage of 85V across the converter.There is 265V maximum supply voltage across the converter.

TOP246R-TL Features

Packaged with TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Switching Frequency at 66kHz~132kHz

TOP246R-TL Applications

There are a lot of Power Integrations
TOP246R-TL AC DC Converters applications.

AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
