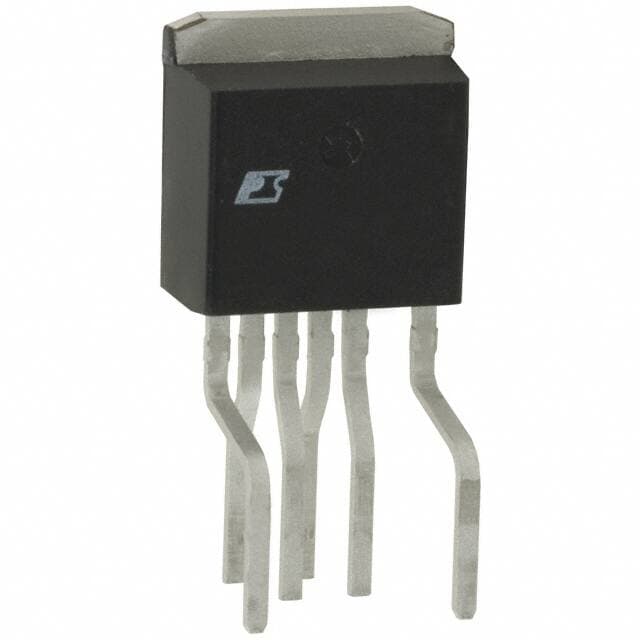

Power Integrations TOP247F

Manufacturer No:

TOP247F

Manufacturer:

Power Integrations

Package:

TO-262-7 (Formed Leads), 6 Leads

Description:

6 Terminations AC to DC power converter TOPSwitch®-GX Series 66kHz~132kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP247F information

Power Integrations TOP247F technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP247F.

Type
Parameter

Mounting Type
Through Hole

Package / Case
TO-262-7 (Formed Leads), 6 Leads

Surface Mount
NO

Operating Temperature
-40°C~150°C TJ

Packaging
Bulk

Series
TOPSwitch®-GX

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
TIN LEAD

Additional Feature
REQUIRES AN AC SUPPLY OF 85 TO 265 V

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
165W

Technology
CMOS

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PZIP-T6

Qualification Status
Not Qualified

Analog IC - Other Type
SWITCHING REGULATOR

Control Features
Frequency Control

Topology
Flyback

Control Mode
VOLTAGE-MODE

Output Current-Max
5.76A

Frequency - Switching
66kHz~132kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Duty Cycle
66.5%

Output Isolation
Isolated

Voltage - Breakdown
700V

Length
10.29mm

Width
4.435mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP247F.

Datasheets:

powerintegrations-top249rtl-datasheets-3350.pdf

TOP247F Overview

In the package TO-262-7 (Formed Leads), 6 Leads , the ac to dc converter is embedded.The AC/DC power converter type is Bulk .It is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.In this AC to DC transformer, the switching frequency is 66kHz~132kHz .As a result, it has had 6 terminations.There are 3 pins in the ac-dc converter.It belongs to the family of TOPSwitch®-GX manufacturers.AC to DC converter is included in Switching Regulator or Controllers .A maximum current of 5.76A may be supplied to the ac to dc inverter.In addition to REQUIRES AN AC SUPPLY OF 85 TO 265 V , this ACDC converter can also be used to determine REQUIRES AN AC SUPPLY OF 85 TO 265 V .

TOP247F Features

Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz

TOP247F Applications

There are a lot of Power Integrations
TOP247F AC DC Converters applications.

Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
