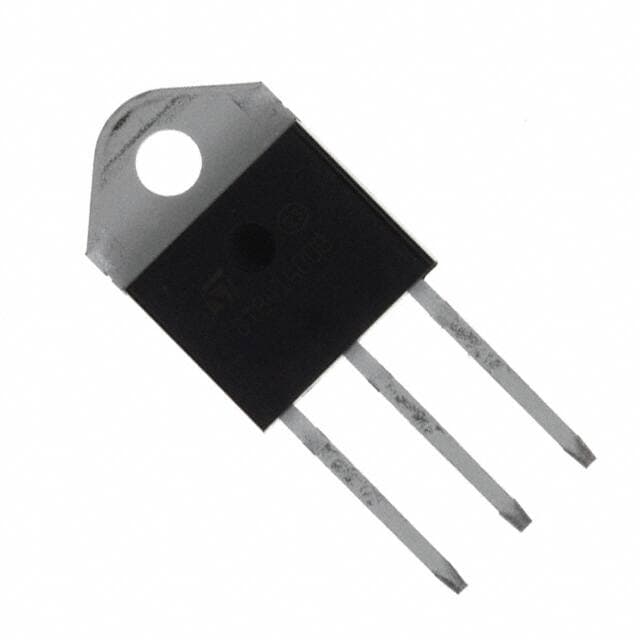

ST TPDV1240RG
Manufacturer No:
TPDV1240RG
Manufacturer:
Package:
TOP-3
Description:
40A high-voltage Triacs
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TPDV1240RG information
ST TPDV1240RG technical specifications, attributes, parameters and parts with similar specifications to ST TPDV1240RG.
- Type
- Parameter
- RoHS Status
- RoHS Compliant
- Part Life Cycle Code
- Active
- Ihs Manufacturer
- STMICROELECTRONICS
- Reach Compliance Code
- compliant
- ECCN Code
- EAR99
- Samacsys Manufacturer
- STMicroelectronics
- Case Connection
- ISOLATED
- Configuration
- SINGLE
- Critical Rate of Rise of Commutation Voltage-Min
- 0.00001 V/us
- Critical Rate of Rise of Off-State Voltage-Min
- 0.0002 V/us
- DC Gate Trigger Current-Max
- 200 mA
- DC Gate Trigger Voltage-Max
- 2.5 V
- Leakage Current-Max
- 5 mA
- Number of Elements
- 1
- Operating Temperature-Max
- 125 °C
- Operating Temperature-Min
- -40 °C
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- RMS On-state Current-Max
- 40 A
- Reference Standard
- UL RECOGNIZED
- Repetitive Peak Off-state Voltage
- 1200 V
- Surface Mount
- NO
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Trigger Device Type
- TRIAC
Download datasheets and manufacturer documentation for ST TPDV1240RG.
Datasheets:
Features:
- High voltage and current ratings of 1.2kV and 40A respectively
- Low on-state voltage drop of 1.2V
- Low gate trigger current of 1mA
- High surge current capability of up to 200A
- High temperature operation up to 150°C
Applications: The STMicroelectronics TPDV1240RG is suitable for a wide range of applications, including motor control, lighting control, heating control, and power switching. It is also suitable for use in high-voltage and high-current applications, such as in power supplies, welding equipment, and industrial automation.
