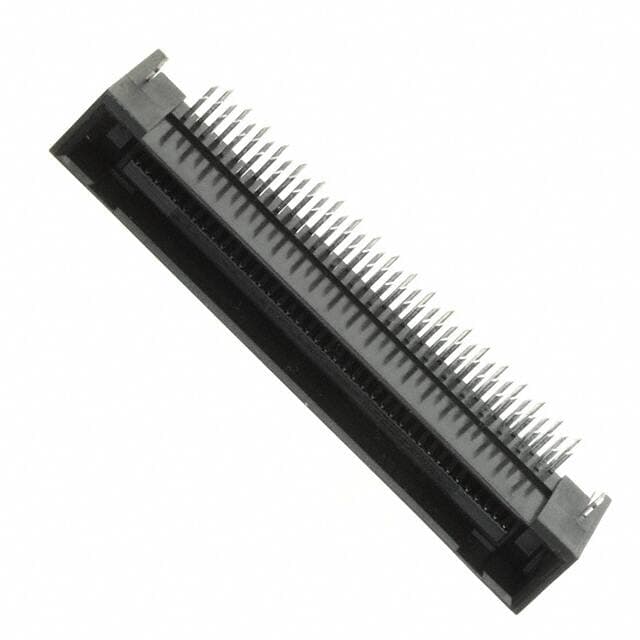

JAE TX25-80P-LT-H1E

Manufacturer No:

TX25-80P-LT-H1E

Manufacturer:

JAE

Package:

Description:

Plug, Center Strip Contacts Tray 2 Rows 0.050 1.27mm Through Hole, Right Angle 80 Positions TX25 Gold Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TX25-80P-LT-H1E information

JAE TX25-80P-LT-H1E technical specifications, attributes, parameters and parts with similar specifications to JAE TX25-80P-LT-H1E.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Housing Material
PBT

Contact Materials
Copper

Voltage Rated
500V

Packaging
Tray

Series
TX25

Published
2000

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Through Hole

Connector Type
Plug, Center Strip Contacts

Number of Positions
80

Max Operating Temperature
80°C

Min Operating Temperature
-40°C

Number of Rows
2

Gender
Male

Pitch
0.050 1.27mm

Orientation
Right Angle

Current Rating
1A

Contact Finish
Gold

Lead Pitch
1.27mm

Housing Color
Black

Features
Board Lock

Contact Finish Thickness
3.94μin 0.10μm

Height Above Board
0.354 9.00mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JAE TX25-80P-LT-H1E.

Product Description:

The JAE Electronics TX25-80P-LT-H1E is a high-quality, rectangular connector designed for board-to-board applications. This plug-type connector features a male gender and is constructed with a durable black PBT housing. The connector has a right-angle orientation and a through-hole mounting type, making it easy to integrate into a variety of electronic systems.

Features:

80 positions in 2 rows, with a pitch of 0.050 inches (1.27mm)
Center strip contacts for reliable connections
Gold-plated contacts with a thickness of 3.94μin (0.10μm) for enhanced durability
Copper contact materials for excellent conductivity
Board lock feature for secure connections
Flammability rating of UL94 V-0 for safety
Insulation resistance of 100 MOhm for reliable operation
Lead-free construction for environmental compliance
Operating temperature range of -40°C to 80°C

Applications:

Primary applications: Industrial automation, medical devices, and automotive systems
Secondary applications: Aerospace, defense, and consumer electronics

Alternative Parts:

TX25-40P-LT-H1E (40-position version)
TX25-60P-LT-H1E (60-position version)

Embedded Modules:

Various embedded modules, such as those used in industrial control systems, medical devices, and automotive systems, may utilize this connector.

FAQs:

Q: What is the maximum operating temperature of the TX25-80P-LT-H1E? A: The maximum operating temperature is 80°C.

Q: What is the minimum operating temperature of the TX25-80P-LT-H1E? A: The minimum operating temperature is -40°C.

Q: What is the lead time for the TX25-80P-LT-H1E? A: The factory lead time is 14 weeks.

Q: Is the TX25-80P-LT-H1E RoHS compliant? A: Yes, the TX25-80P-LT-H1E is RoHS compliant.

Q: Is the TX25-80P-LT-H1E lead-free? A: Yes, the TX25-80P-LT-H1E is lead-free.

Q: What is the flammability rating of the TX25-80P-LT-H1E? A: The flammability rating is UL94 V-0.

Q: What is the insulation resistance of the TX25-80P-LT-H1E? A: The insulation resistance is 100 MOhm.

Q: What is the contact finish thickness of the TX25-80P-LT-H1E? A: The contact finish thickness is 3.94μin (0.10μm).

Q: What is the contact material of the TX25-80P-LT-H1E? A: The contact material is copper.

Q: What is the voltage rated of the TX25-80P-LT-H1E? A: The voltage rated is 500V.

Q: What is the published date of the TX25-80P-LT-H1E? A: The published date is 2000.
