FTDI UMFT4222EV-D

Manufacturer No:

UMFT4222EV-D

Manufacturer:

Package:

Description:

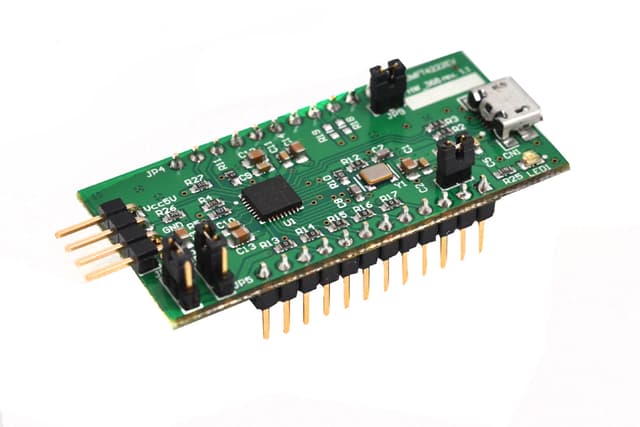

FT4222H evaluation module, USB Hi-Speed to SPI/I2C Master/Slave, VQFN-32 Hi-Speed USB2.0 to QuadSPI/I2C Bridge IC Development Module for FT4222HQ-D

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UMFT4222EV-D information

FTDI UMFT4222EV-D technical specifications, attributes, parameters and parts with similar specifications to FTDI UMFT4222EV-D.

Type
Parameter

Data Rates
Up to 53.8Mbps in QuadSPI master mode

Interfaces
SPI/I2C/GPIO

USB Connector
Micro B

Packages
N/A

Channels
Up to 4 (depending on mode)

I/O Connector
0.8” wide 24 pin DIP

I/O Voltage
1.8V to 3.3V

USB Class
Vendor

Virtual Com Port
No

FTDI Internal IC
FT4222H

Download datasheets and manufacturer documentation for FTDI UMFT4222EV-D.

Datasheet:

25eccb8110c6543736c5687ad95acc24.pdf

The UMFT4222EV-D is a development module which uses the FTDI FT4222H, a Hi-Speed USB2.0 to QuadSPI/I2C device controller in compact 32-pin QFN package. FT4222H requires an external Crystal (12MHz) for the internal PLL to operate. It supports multi-voltage IO, 3.3V, 2.5V or 1.8V. It also provides 128 Bytes of one-time-programmable (OTP) memory space for storing vendor specific information. The FT4222H contains SPI/I2C configurable interfaces. The SPI interface can be configured as master mode with single, dual, or quad bits data width transfer or slave mode with single bit data width transfer. The I2C interface can be configured as master or slave mode

The UMFT4222EV is supplied as a small PCB which is designed to plug into a standard 0.8″” wide 24 pin DIP socket. All components used, including the FT4222H are Pb-free (RoHS compliant).
