FTDI UMFT4233HPEV

Manufacturer No:

UMFT4233HPEV

Manufacturer:

Package:

Description:

USB Hi-Speed FT4233HP Evaluation USB High Speed Quad Channel Serial bridge evaluation module with two Type-C USB PD Ports and USB Bus Power options (5V3A,9V3A,12V3A,15V3A and 20V3A). Click here for stock enquiry

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UMFT4233HPEV information

FTDI UMFT4233HPEV technical specifications, attributes, parameters and parts with similar specifications to FTDI UMFT4233HPEV.

Type
Parameter

Data Rates
12Mbaud

USB Speed
High Speed (480Mbps)

Interfaces
MPSSE

USB Connector
USB Type C

Channels
4

I/O Connector
Two 26-pin, 0.1” dual-row headers

I/O Voltage
3.3V

USB Class
FTDI Drivers

Virtual Com Port
Yes

FTDI Internal IC
FT4233HP

Download datasheets and manufacturer documentation for FTDI UMFT4233HPEV.

Datasheet:

b9b6b685899db543fbd15ef1738cf755.pdf

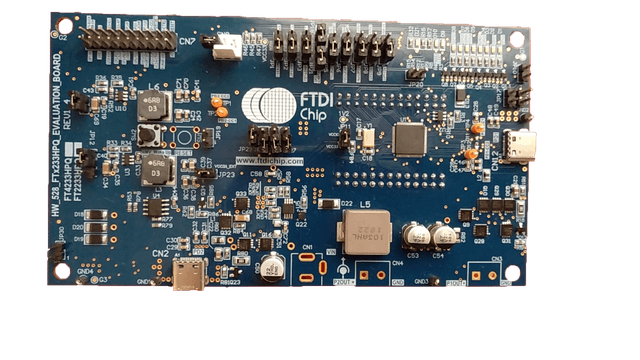

The FT4233HP EVB is a high speed USB Serial bridge evaluation module with two Type-C USB PD ports, with PD1 port supporting both power sink and source roles (Initial Sink), and PD2 port only supporting a power sink port role. Both PD ports support 5V, 9V,12V,15V, and 20V PDO profiles, and these profiles are configurable through the external EEPROM at power-up. PD1 port supports USB communication, and PD2 port is power port only without USB data. EVB supports power pass-through feature where the input power on PD2 is passed through to PD1

User Guide
