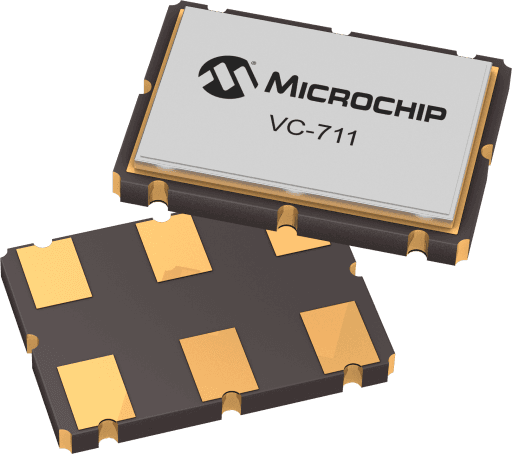

Microchip VC-711-JDE-KAAN-156M250000

Manufacturer No:

VC-711-JDE-KAAN-156M250000

Manufacturer:

Microchip

Package:

DILCC6,.2

Description:

Low Jitter Clock Oscillator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VC-711-JDE-KAAN-156M250000 information

Microchip VC-711-JDE-KAAN-156M250000 technical specifications, attributes, parameters and parts with similar specifications to Microchip VC-711-JDE-KAAN-156M250000.

Type
Parameter

Dimensions
7050 6-Pin

Supply Voltage
1.8, 2.5, 3.3

TempRange Max °C (degrees Celsius)
105

TempRange Min °C (degrees Celsius)
-40

Download datasheets and manufacturer documentation for Microchip VC-711-JDE-KAAN-156M250000.

Data Sheets:

d1ad3b8a067b7b61f0c052f819b0de68.pdf

eb4e38e3b267ecc32ea34d7f5fd918b9.pdf

Not Recommended for New Designs. Please use alternate VC-714 product family.

Frequency Range - 10MHz to 220MHz

Size - 5.0x7.0mm

Output Format - LVPECL, LVDS

RMS Phase Jitter - 75fs

Supply Voltage - 2.5, 3.3

Maximum Operating Temperature Range - -40 to +105C

Applications - Ethernet/GbE/Synchronous Ethernet, PCIe, Fiber Channel, Enterprise Storage & Servers, Test & Measurement, GPON, Clock Source for ADC's/DAC's/FPGA's

User Guide
