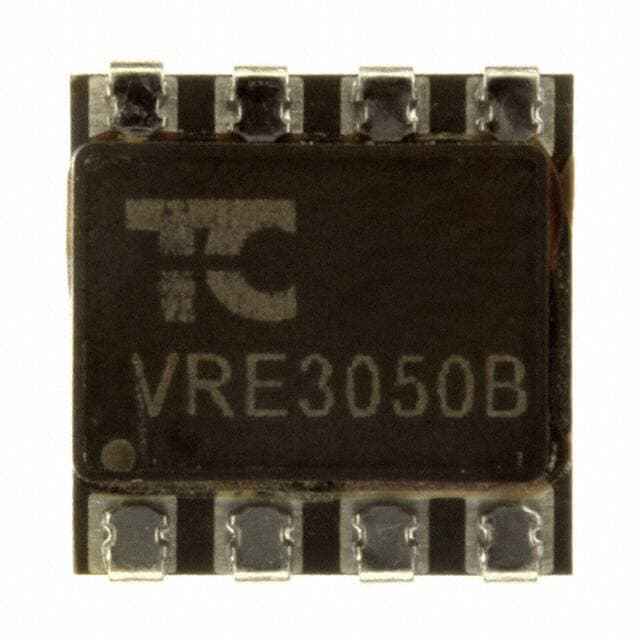

APEX VRE3050BS

Manufacturer No:

VRE3050BS

Manufacturer:

APEX

Package:

8-SMD, Flat Lead

Description:

0°C~70°C TA Fixed PMIC VRE3050 15V 8-SMD, Flat Lead

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VRE3050BS information

APEX VRE3050BS technical specifications, attributes, parameters and parts with similar specifications to APEX VRE3050BS.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SMD, Flat Lead

Operating Temperature
0°C~70°C TA

Packaging
Tube

Published
2012

Tolerance
±0.02%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Temperature Coefficient
1ppm/°C

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
C BEND

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VRE3050

Pin Count
8

JESD-30 Code
R-PDSO-C8

Number of Outputs
1

Output Type
Fixed

Supply Voltage-Max (Vsup)
36V

Supply Voltage-Min (Vsup)
8V

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
4mA

Voltage - Input
8V~36V

Current - Output
15mA

Reference Type
Series

Min Output Voltage
5V

Temp Coef of Voltage-Max
1 ppm/°C

Noise - 0.1Hz to 10Hz
3μVp-p

Noise - 10Hz to 10kHz
5μVrms

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX VRE3050BS.

Datasheets:

apexmicrotechnology-vre3050js-datasheets-3568.pdf

VRE3050BS Overview

The reference voltage makes use of the handy 8-SMD, Flat Lead package.This part is used as a voltage reference and has a Series control.External packaging Tube encloses the voltage reference ic.There are various functions associated with terminations 8.Tolerance of ±0.02% for precise voltage measurements.Parts are coupled with analog ICs.A voltage of 5V is output as a result of the test statistics.There is 1 need to generate more than 1 outputs.A Fixed form is available for input by the user.There are 8 pins on this voltage reference ic.Reflow soldering should take place at a temperature of NOT SPECIFIED more than NOT SPECIFIED.In the case of demanding PCB designs, Surface Mount is available.Suitable for work within 0°C~70°C TA.Searching for "VRE3050" will reveal other relevant parts.Inputs of 15mA are compatible with the reference voltage.The application is suitable for Surface Mount.5V is the lowest voltage the voltage reference ic can output.A 15V voltage supply is required.It needs a minimum voltage of 8V.Most commonly, the voltage reference ic can supply 8V~36V volts.This voltage reference circuit runs on a supply current of 4mA volts.

VRE3050BS Features

±0.02% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT SPECIFIED

VRE3050BS Applications

There are a lot of Apex Microtechnology
VRE3050BS Voltage Reference applications.

Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
