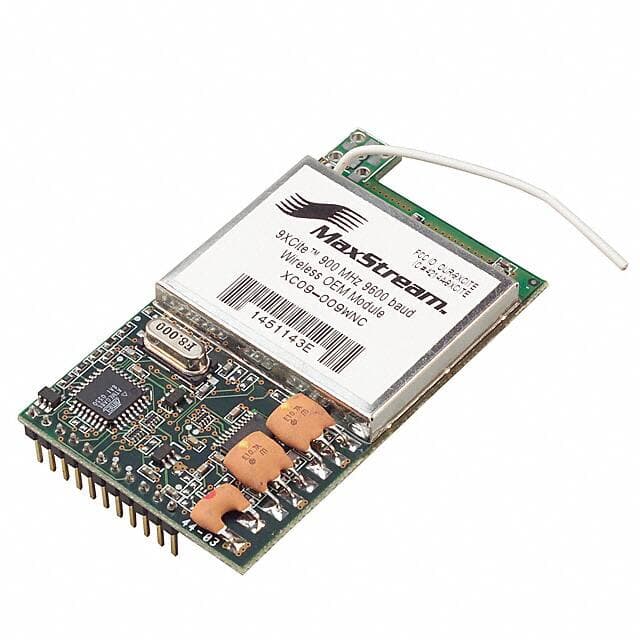

Digi XC09-009WNC

Manufacturer No:

XC09-009WNC

Manufacturer:

Digi

Package:

Module

Description:

900MHz General ISM < 1GHz 0°C~70°C 2.85V~5.5V UART Bulk Integrated, Wire Antenna 9.4kbps 6dBm -108dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC09-009WNC information

Digi XC09-009WNC technical specifications, attributes, parameters and parts with similar specifications to Digi XC09-009WNC.

Type
Parameter

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
0°C~70°C

Packaging
Bulk

Series
9XCite?

Published
2006

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
2.85V~5.5V

Frequency
900MHz

Data Rate
9.4kbps

Power - Output
6dBm

RF Family/Standard
General ISM < 1GHz

Antenna Type
Integrated, Wire Antenna

Sensitivity
-108dBm

Serial Interfaces
UART

Current - Receiving
45mA~55mA

Current - Transmitting
55mA

Modulation
FHSS, FSK

Download datasheets and manufacturer documentation for Digi XC09-009WNC.

Datasheets:

digi-xibr-datasheets-5684.pdf

XC09-009WNC Overview

We are using Through Hole as the RF Transceiver' mounting method.A Bulk package is used in this RF Transceiver module to optimize performance.Keeping Transceiver's operating temperature at 0°C~70°C is essential when operating.Known as a RF Transceiver Module, this module is part of the 9XCite? family.2.85V~5.5V voltage is available from the RF Transceiver.900MHz Hz is the frequency at which the Transceiver operates.

XC09-009WNC Features

Through Hole
Bulk package
2.85V~5.5V volts

XC09-009WNC Applications

There are a lot of Digi
XC09-009WNC RF Transceiver Modules applications.
